The video recording segment without sound is exported using the playback control panel. The main archive of video server can be exported as well as backup archive, video gate archive and external archive depending on playback mode selected – see Operations with the archives.

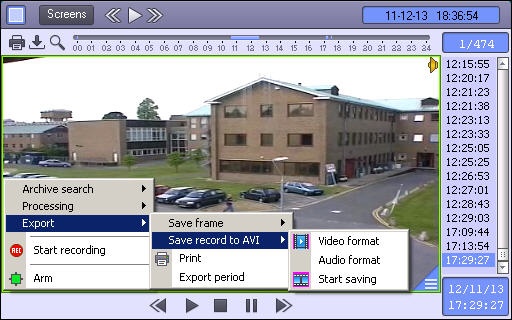

Choose Export in the functions menu of the video surveillance window and then select Save Recording to AVI.

Parameters of the video and audio, which will be saved, may be configured in the displayed window.

Compression quality is selected in the standard Windows dialog box.

Select Codec in the dialog box and, if available, compression quality.

Note.

Settings of video compression will be ignored if export of the archive period in original format was performed - see Export of the archive period.

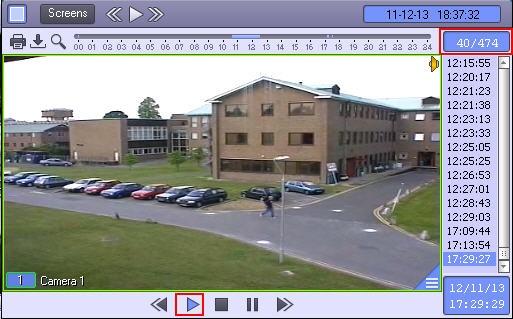

As soon as recording saving parameters are selected, the video segment may be exported to the file by selecting the Start Saving command. The Playback button will be highlighted in the course of saving, whereas the playback position indicator will count down the frame currently being processed.

Click the  button after the start of saving for quick export (export of speeded video record). This button double speeds up export of video record. Maximal available speed up is 8 times.

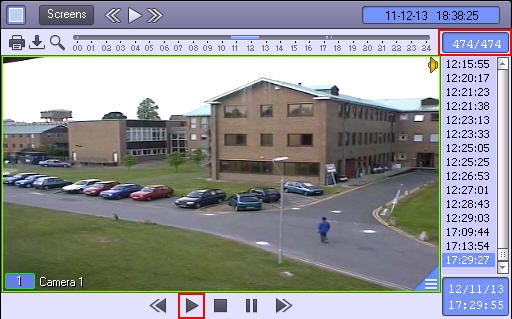

As soon as the video segment saving process is complete, the Playback button is no longer highlighted.

The file containing the saved video recording is saved to the C:\Users\%current user name%\Documents\Intellect\export\ directory. The file name is generated as follows: <camera number> (<date> <time>). For instance, 02 (03-10-07 16'28'06).avi (file extension is controlled through the compression quality configuration).

Note.

If AVI format is used, the final file is not to be bigger than 2 GB.
