To show the minimap, right click in the map area spare from object icons and select the Show minimap in the menu.

Note.

Intellect can be configured so that the minimap appears when pointing the cursor to the top left corner of the map. This is set by the ShowOnMouseMove key (see Registry keys reference guide).

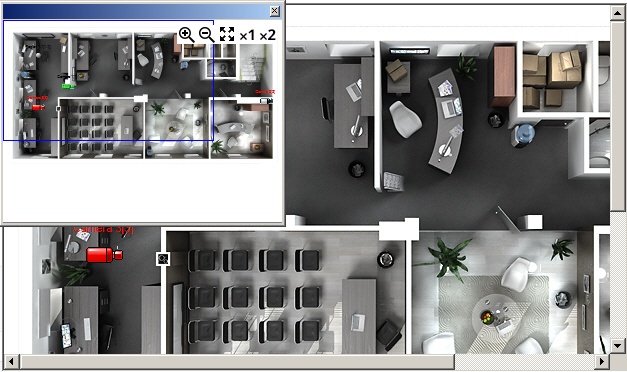

Minimized object icons are shown on the minimap. Blue rectangle indicates the part of the layer currently displayed in the map box. The map box is centered when left-clicking the minimap.

The minimap box can be dragged by its header when holding left-click. The minimap size can be changed – make it bigger or smaller.

Map scale control panel is in the upper right of the minimap box:

  • The and buttons are for upscale and downscale Map by 10%
  • The button corresponds to Fit to window function.
  • The buttons set scale of 100% and 200% correspondingly.

To shutdown the minimap box click the  button in the upper right corner.
