Camera status indication

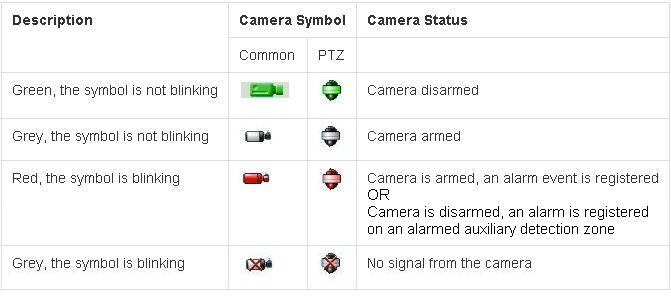

The camera symbol as shown on the Map is given in the figure.

The camera status is indicated through different colours and intermittent blinking of the given camera symbol on the Map.



Note.

If camera performs recording, then the camera icon is marked with REC: or .

Camera operations

The camera is operated via the feature menu of the given camera symbol shown on the Map.

The feature menu of the camera is called up by a right mouse click on the corresponding camera symbol.

The feature menu of the camera provides access to various operating functions of the camera.

Feature menu item

Function

Comments

Camera No./Connection

Displays the selected camera identifier, as well as the date and time of the first connection of the camera



Stop recording

Stops recording

See section: Stopping the recording

Video out

Outputs the camera image to the analogue monitor connected to the system

See section: Video surveillance using an analog monitor

Arm

Arms the camera in the main detector zone

See section: Camera arming and disarming

Start recording

Starts recording at the Operator's command

See section: Recording by Operator command

Sip disconnected

Disconnection of a Sip device

See Intercom Subsystem Reference and Information Guide

Disarm

Disarms the camera in the main detector zone

See section: Camera arming and disarming

Sip connectedConnection of a Sip device

See Intercom Subsystem Reference and Information Guide

Request frame

Sends the GET_FRAME reaction to the system without the path<> parameter. As a result, the FRAME_SENT event is generated with the data<> parameter. Please see the details on how to process this event in The SaveToFile method section of the Programming Guide (JScript).

Note. This function will not work for a virtual camera playing video in avi format.



Note

The Start video export and Stop video export menu items cannot be used on the Map, because the reactions corresponding to them need extra settings. You can use these reactions using macros and scripts (see Administrator's Guide).

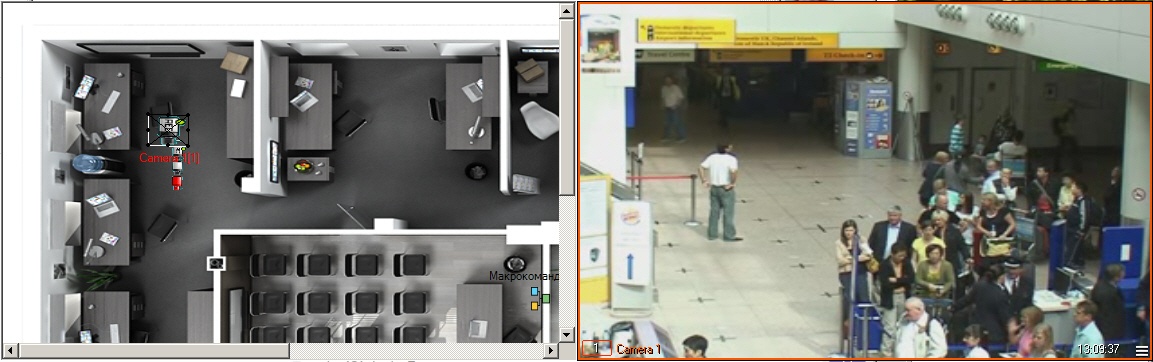

Displaying camera on Video surveillance monitor when selected on Map

If Video surveillance monitor in Active camera mode was configured at system setup (see Configuring the display mode for camera boxes section of the  Administrator's Guide ), then video from a camera is displayed on such Video surveillance monitor when the camera icon is clicked on Map.
