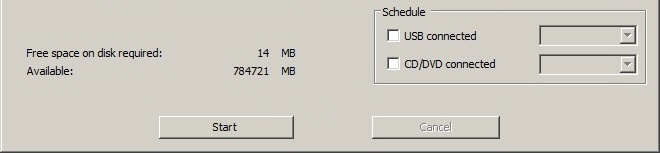

After configuring required export parameters click the Start button to start the process.



Note.

The Start button is inactive if there are no archive files by selected cameras at specified period. Also the corresponding message is displayed above the button in such case.

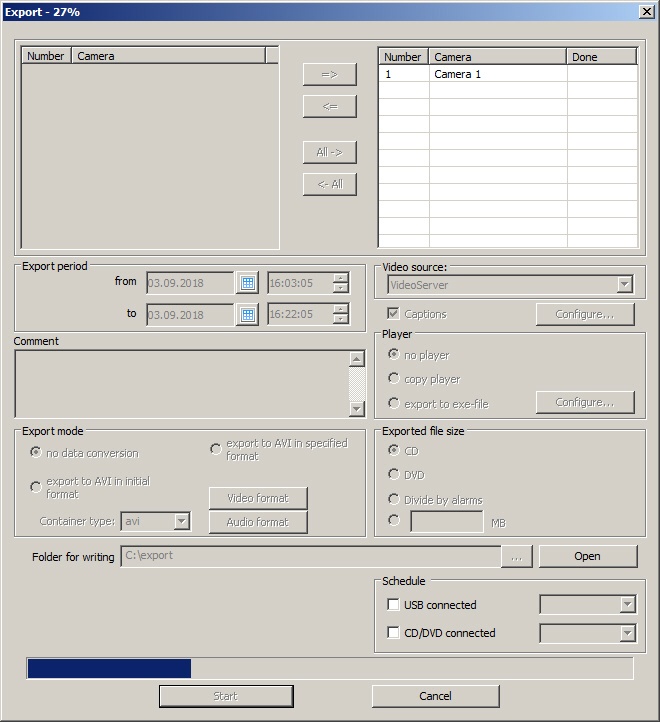

After clicking the Start button all elements of utility configuring become inactive and indicator of export performing will display at the bottom of the utility window. Percent of export performing will display in the window title.

It is possible to stop export at any time clicking the Cancel button.

Avi-file with «camera_id_YYYY-MM-DDTHH-MM-SS.avi» name or VIDEO folder containing archive files if export performed without conversion will be created in the specified folder after export completion.

If there are special characters in the Camera name, such as \, /, :, *, ?, |, ", they are replaced by underscore _ in the file name. Anyway, if camera name is overlayed on video as captions, it is displayed special characters (see also Setting caption export parameters).

Note.

If the resolution is changed during the export, then the exported file will be divided into several parts containing archive intervals with different resolutions.

If only the codec (not the resolution) is changed during the export, then the exported file won’t be divided into parts.

The change of a codec and resolution can be caused by the selection of different streams for recording upon alarm and continuous recording – see Configuration of multistream video section in Administrator's Guide.
