The Settings panel of the Voice Notification Service object

The Voice notification service object is designed for the registration of the program module, which supports voice notification of the surveillance system operation, upon occurrence of certain events.

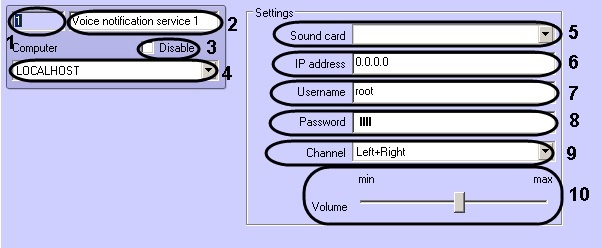

The settings panel of the Voice notification service object is shown in figure.

Table describes the parameters of the settings corresponding to the elements of the settings panel of the Voice notification service object.

№	Parameter	Method for setting the parameter value	Parameter description	Symbols used	Default value	Value range
1	Identification number*	Automatically	Displays the identification number of the Voice notification service object in the digital distributed video surveillance system.	Sequence of numbers	-	From 1 and above. Depends on the number of Voice notification service objects in the digital distributed video surveillance system
2	Name*	Enter the value in the field	Defines the name to the Voice notification service object in the digital distributed video surveillance system.	Latin, Cyrillic and service characters	Voice notificati-on service	A line containing a sequence of any symbols (letters, digits, service characters apart from > and < symbols), not case-sensitive Number of symbols – from 1 to 60.
3	Disable	Is identified by the check mark	Defines the condition of the Voice notification service object (enabled or disabled) in the digital distributed video surveillance system.	Boolean type	Not available	Yes – the Voice notification service is disabled and is not in use No – the Voice notification service is enabled and is in use.
4	Computer	Is selected from the list	Defines the parent Computer object of the digital distributed video surveillance system, to which the given Voice notification service object refers.	Name of the Computer objects registered in the system	Name of the parent Computer object.	Depends on the number of Computer objects in the digital distributed video surveillance system
Settings Group
5	Audio card	Is selected from the list	Defines the device, which will receive an audio signal for voice notification.	Types of audio devices registered in the system.	Name of the audio card installed.	Name of the installed audio card – defines the audio card in the video server of Remote Administrator Workstation, which will process the audio signal of the voice notifications. LinuxHub – defines the LinuxHub type device, which will reproduce the audio signal of the voice notification. Axis – defines the Axis type device, which will reproduce the audio signal of the voice notification.
6	IP-address	Enter the value in the field	Defines the IP-address of LinuxHub and Axis devices. NOTE. This field is active, if LinuxHub and Axis options are selected in the Audio card menu.	Sequence of numbers	0.0.0.0	Sequence of symbols like: xxx.xxx.xxx.xxx From 0.0.0.0 to 255.255.255.255 depending on the local network settings.
7	User	Enter the value in the field	Defines the user name used for connection to LinuxHub and Axis devices. NOTE. This field is active, if LinuxHub and Axis options are selected in the Audio card menu.	Latin characters, digits and service characters.	root	A line containing a sequence of any symbols (letters, digits, service characters), case-sensitive. Number of symbols – from 1 to 60.
8	Password	Enter the value in the field	Defines a password used for connection to LinuxHub and Axis devices. NOTE. This field is active, if LinuxHub and Axis options are selected in the Audio card menu.	Latin characters, digits and service characters.	root	A line containing a sequence of any symbols (letters, digits, service characters), case-sensitive. Number of symbols – from 1 to 60.
9	Channel	Is selected from the list	Defines a channel in the audio card of the video server to reproduce the audio signal.	Name of the audio channel, where the sound is transmitted.	Left+Right	Left+Right – the audio notification signal is transmitted to both channels of the audio card. Left – the audio notification signal is transmitted to the left channel of the audio card. Right – the audio notification signal is transmitted to the right channel of the audio card.
10	Volume	The slide is placed in the required position.	Defines the volume of the audio signal, transmitted to the audio card. NOTE. The option is active, if the Audio board option is selected in the audio card menu.	Db	24 Db	Min - 0 Max - 45

*The name of the element is not displayed in the settings panel of the given object.
