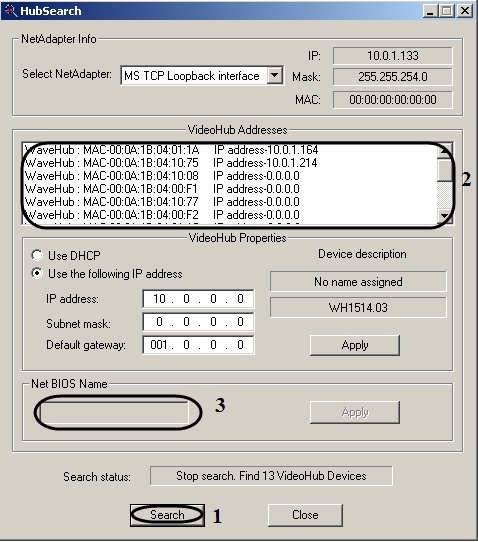

Using the  HubSearch.exe utility is done in the following way:

  1. Run the HubSearch.exe utility.
  2. To search for device click Search.
  3. From the list  VideoHub Addresses select the requires net device (2)
  4. When protocol of site dynamic configuration is used, set the switch to the position Use DHCP. To change net settings set the switch to the position Use the following IP address
  5. Click Apply button of VideoHub Properties group to save the changes.
  6.  If necessary change the net name of the device in the field Net BIOS Name (3).
  7.  Click Apply button of Net BIOS Name group to save the changes(1).
  8. Close the  HubSearch.exe  utility(see. section Starting and shutting-down the HubSearch.exe utility).

Work with HubSearch.exe  utility is completed.
