To configure displaying the list of calls from security intercom terminals in the Intercom Control Monitor interface object, do the following:

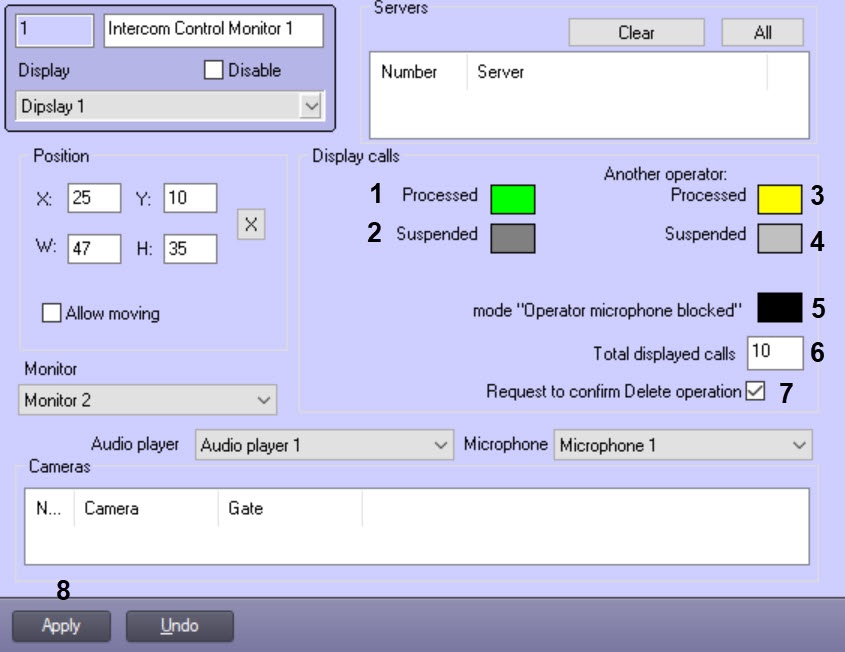

  1. Go to the settings panel of the Intercom Control Monitor interface object.

  2. Choose the selection color of accepted call by operator in the Intercom Control Monitor interface object. Double-click the left mouse button on the Processed field of the Signalization display group (1).

    Note.

    The Processed term means that connection between operator and person which use the SIP-device of security intercom terminal established.
  3. In the opened Windows OS standard dialog box select the required color and click OK.
  4.  Choose the selection color of suspended call by operator in the Intercom Control Monitor interface object. Double-click the left mouse button on the Suspended field of the Signalization display group (2).
  5. In the opened Windows OS standard dialog box select the required color and click OK.
  6.  Choose the selection color of a call received by another operator in the Intercom Control Monitor interface object. Double-click the left mouse button on the Another operator: Processed field of the Signalization display group (3).
  7. In the opened Windows OS standard dialog box select the required color and click OK.
  8. Choose the selection color of a call suspended by another operator in the Intercom Control Monitor interface object. Double-click the left mouse button on the Another operator:Suspended field of the Signalization display group (4).
  9. In the opened Windows OS standard dialog box select the required color and click OK.
  10. Choose the selection color of a call processed in half-duplex mode (audio signal transmitting only in “Terminal -> Operator” direction).  Double-click the left mouse button on the Channel “Operator -> communication terminal” disabled field of the Signalization display group (5).
  11. In the opened Windows OS standard dialog box select the required color and click OK.
  12. In the Total displayed calls field enter the number of calls (waiting for, received, suspended) displayed in the list of the Intercom Control Monitor interface object (6).
  13. Set the Request to confirm Delete operation checkbox if it’s needed to confirm the deleting if call from the list (7).
  14. To save changes click Apply button (8).

Configuration of displaying the list of calls from security intercom terminals in the Intercom Control Monitor interface object is completed.
