In Intellect, you can add Buttons that will be displayed in the interface window of the Video surveillance monitor.

The actions when clicking such a Button are the following:

  • switching to another camera;

  • running a macro.

The Button can also perform no actions. The number of Buttons is unlimited. By default, the Buttons display is disabled.

To enable the Buttons display, do the following:

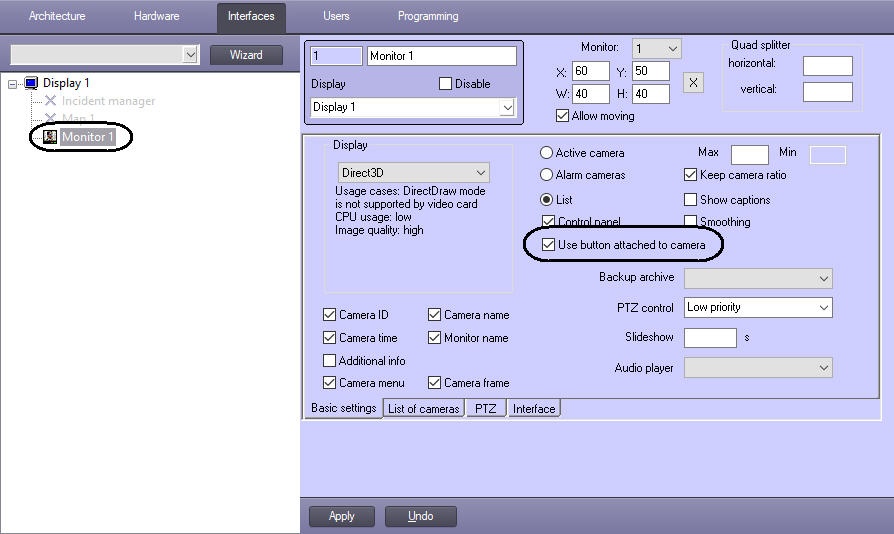

  1. Go to the settings panel of the Monitor interface object.
  2. Set the Use button attached to camera checkbox.

  3. Click the Apply button.

As a result, the Buttons will be displayed in the Monitor over the video from the cameras for which the Buttons were created (see Configuring a button to display on the Monitor).
