To select Intercom Subsystems for working with Client, do the following:

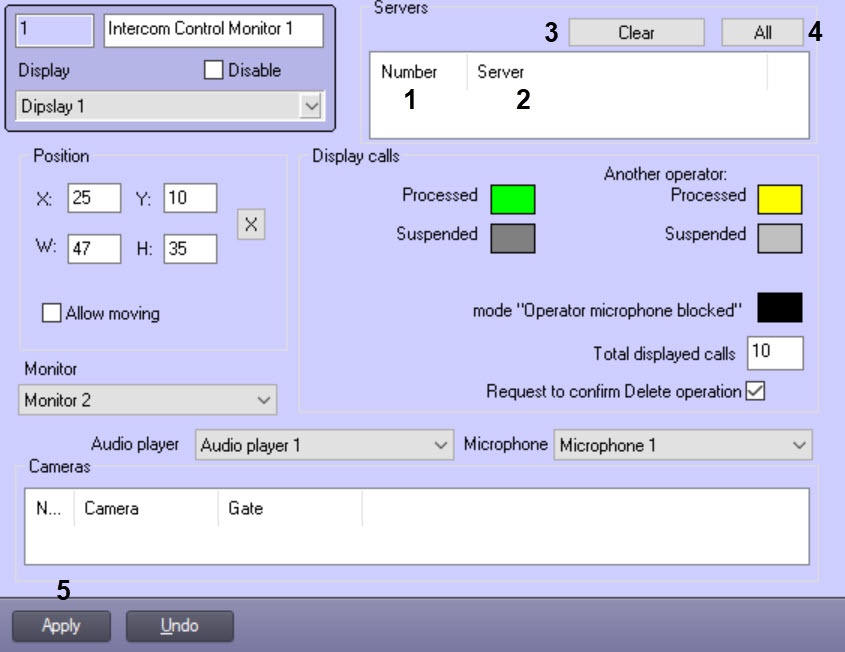

  1. Go to the settings panel of the Intercom Control Monitor interface object.
  2. From the drop-down list in the Number column of Servers group select the number of required Intercom Subsystem object (1).
  3. As a result the name of selected object will automatically display in the Server column of Servers group (2).

  4. Repeat steps 2-3 for all required Intercom Subsystem objects.

    Note.

     To clear the table, click the Clear button (3).
    To select all registered Intercom Subsystems in the system, click the All button (4).
  5. To save changes click the Apply button (5).

Selecting of Intercom Subsystems for working with Client is completed.
