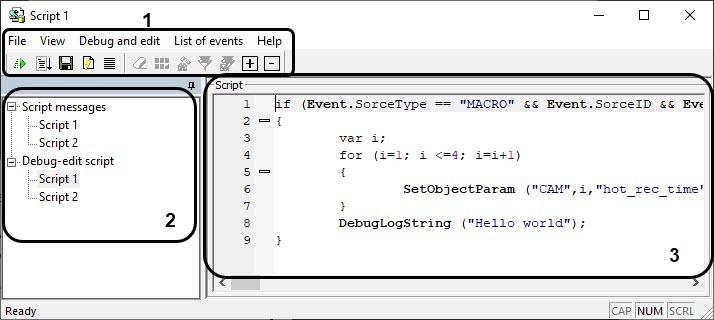

The user interface of the Editor-Debugger utility contains the main menu and the toolbar (1), the objects list (2) and the viewing/editing panel (3).
