To add peripherals like controllers or gates, do the following steps:

  1. In the Peripherals menu, select Peripheral list.

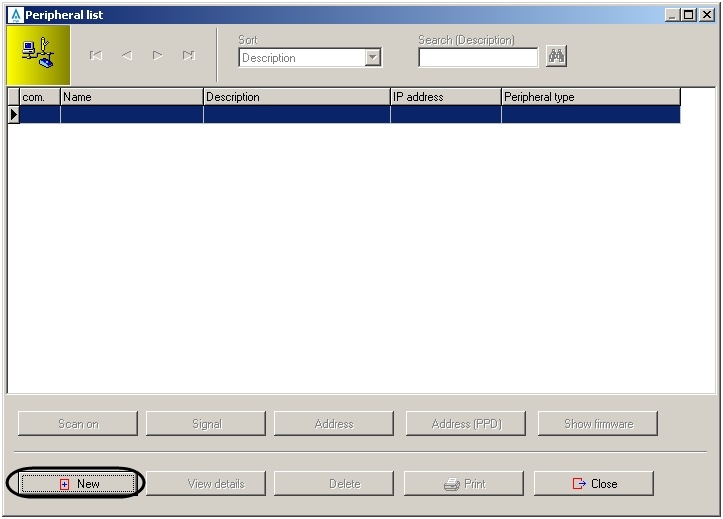

  2. To add the device click New.
  3. The Peripheral window opens.
  4. In the Name field, enter a name of added device (1).
  5. In the Description field, enter information about this device (2).
  6. In the IP address field, enter an IP address of device (3).
  7. From the Peripheral type drop-down list, select a type of the connected device (4).
  8. To save changes click Save (5).
  9. Peripheral will be added to the Peripheral list (1).
  10. To set the connection to the online controller do the following:
    1. Click Scan on (2).
    2. Press tamper on the peripheral card (1).

    3. Wait when the indicator near the tamper starts flashing (2).

      Note.

      Open the device case for access to temper.
    4. Click Address (3). If the connection established, indicator will be displayed in the com. column.

      On default the Address button is inactive. To specify address select the Peripherals -> Monitoring of online locks and set checkbox close to corresponding controller and click the Address button.

Adding a peripheral is completed.
