To add a Hikvision face template to the Access Manager module, do the following:

  1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
  2. Select the extension (Hikvision Face) <Terminal Name> that corresponds to a terminal with a biometric face reader.

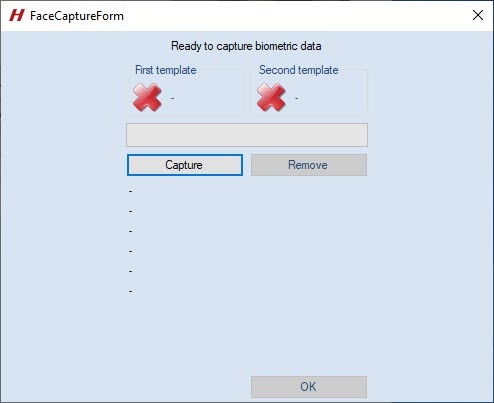

  3. The FaceCaptureForm dialog box opens.

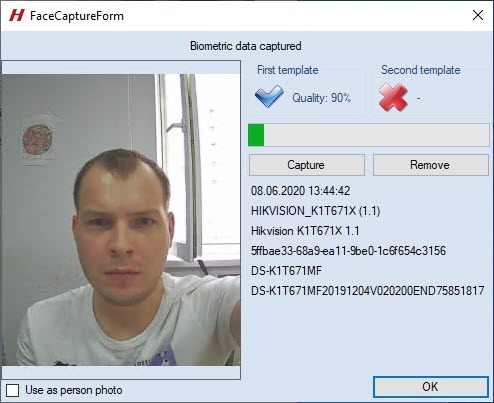

  4. Click the Capture button. Then follow the instructions on the terminal screen. In case of successful face capture, the resulting photo will be displayed, and the template of this photo will be saved.

  5. To use the resulting photo as a user photo, set the Use as person photo checkbox (see Assigning a photograph to a user in the Access Manager software module).

    Attention!

    It is highly recommended to set the Use as person photo checkbox so that the photo can be added to other terminals. Otherwise, the photo will be added only to the terminal from which the face was captured, and the face caption will be deleted during the next addition of access parameters.

  6. To delete a face template, click the Remove button.
  7. Click OK to save the face template.

The Hikvision face template is added.
