Adding fingerprints of users from the Access Manager using the Suprema BioMini biometric control reader is carried out as follows:

  1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
  2. Select the (Edit Fingerprints) Suprema BioMini extension that corresponds to the Suprema BioMini control reader.

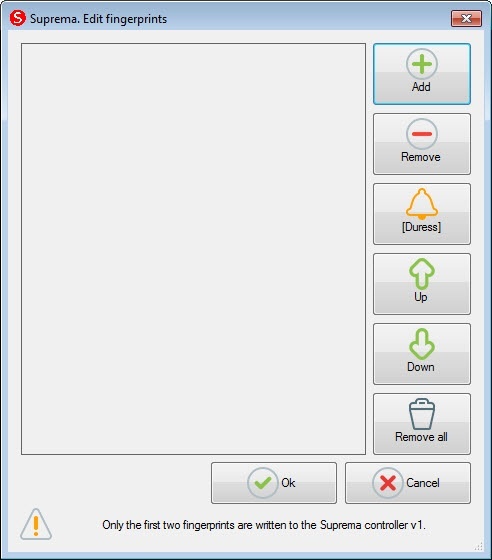

  3. The Suprema. Edit fingerprints dialog box will open. To add a new fingerprint, click the Add button.

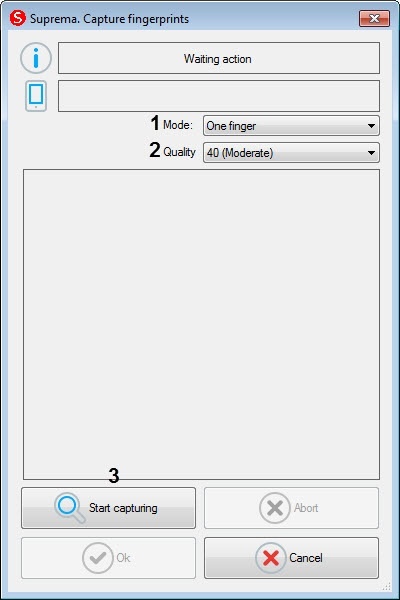

    The Suprema. Capture fingerprints window will open.
  4. From the Mode drop-down list (1) select the fingerprint One finger capture mode.
  5. From the Quality drop-down list (2) select the fingerprint capture quality:
    • 20 (Weak) - low quality.
    • 40 (Moderate) - average quality (default).
    • 60 (Strong) - high quality.
    • 80 (Strongest) - the highest quality.

  6. To start capturing fingerprints, click the Start capturing button (3) and follow the instructions displayed at the top of the Suprema. Capture fingerprints window.

    Note

    To capture fingerprints, each finger or group of fingers should be placed on the reader twice with 5 seconds delay after pressing the Start capturing button and after the first capture.

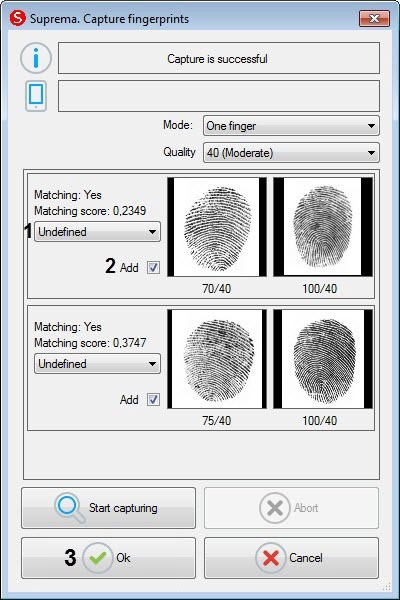

  7. After the fingerprint capture is completed, select the type of scanned finger for each fingerprint in the drop-down list (1):

    • Undefined - undefined.
    • Left thumb - thumb of the left hand.
    • Left index finger - index finger of the left hand.
    • Left middle finger - middle finger of the left hand.
    • Left ring finger - ring finger of the left hand.
    • Left little finger - little finger of the left hand.
    • Right thumb - thumb of the right hand.
    • Right index finger - index finger of the right hand.
    • Right middle finger - middle finger of the right hand.
    • Right ring finger - ring finger of the right hand.
    • Right little finger - little finger of the right hand.

  8. Uncheck the Add check box (2) if it is not necessary to add the fingerprint to the user.

  9. Click OK (3) to save the result.

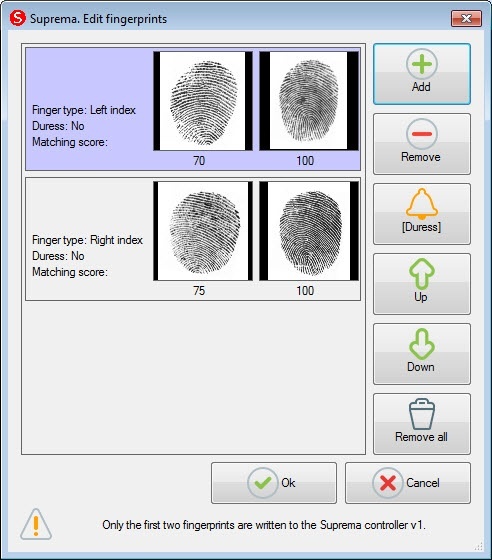

  10. The captured fingerprints will be displayed in the Suprema. Edit fingerprints window.

  11. To remove one fingerprint, select it and click Remove.

    Note

    To remove all fingerprints, click Remove all.

  12. To mark a fingerprint as captured "Under duress", select it and click the [Duress] button.

    Note

    As a result, a silent alarm will be generated when reading this fingerprint.

  13. To move a fingerprint up or down in the list, select it and click the Up or Down button.

  14. To finish entering fingerprints, click OK.

Adding fingerprints of users from the Access Manager using the Suprema BioMini biometric control reader is completed.
