To configure the MicroPoint II cable go to the settings panel of the MicroPoint II Cable object. This object is created on the basis of the MicroPoint II object on the Hardware tab of the System settings dialog window.

Note.

The MicroPoint II controller supports two loops (A, B). If more loops are created they will be ignored by system.

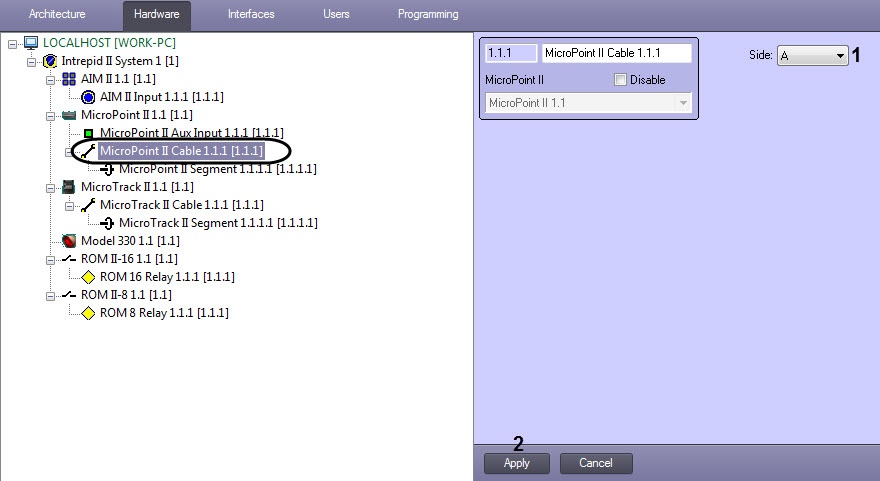

To configure the MicroPoint II cable, do the following:

  1. Go to the MicroPoint II Cable object’s settings panel.
  2. From the Side: drop-down list select the ID of MicroPoint II cable (1).
  3. To save settings in the ACFA PSIM software package click the Apply button (2).

  Configuring of the MicroPoint II cable is completed.
