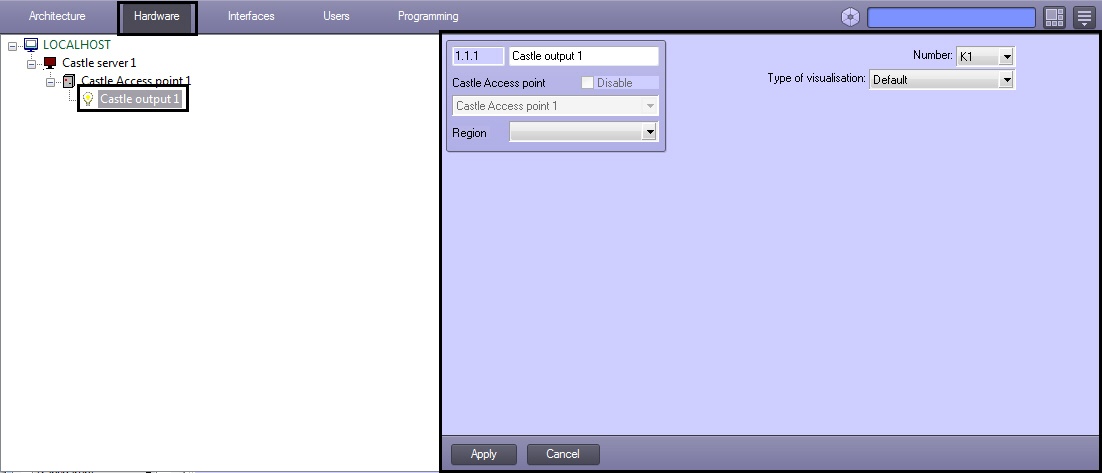

Castle ACS Output is configured on the settings panel of the Castle output object. This object is created on the base of the Castle Access point object in the Hardware tab of the System settings dialog box.

Configuring Castle ACS output is performed as follows:

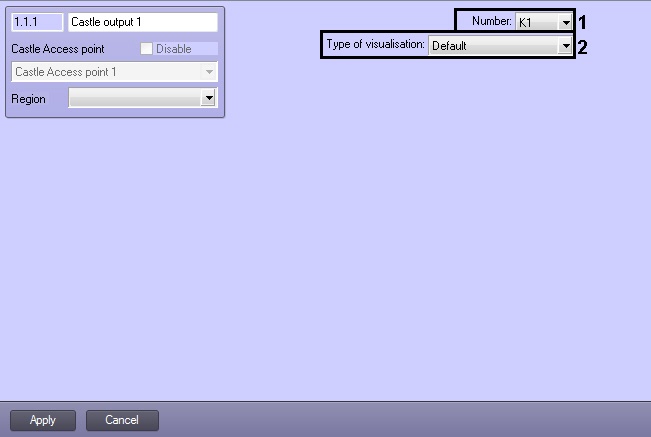

  1. Go to the settings panel of the Castle output object.
  2. The output number is automatically specified when reading Castle ACS configuration (1).
  3. From the Type of visualisation drop-down list select the corresponding set of icons for the output (2).
  4. Click Apply.

Castle ACS outputs are now configured.
