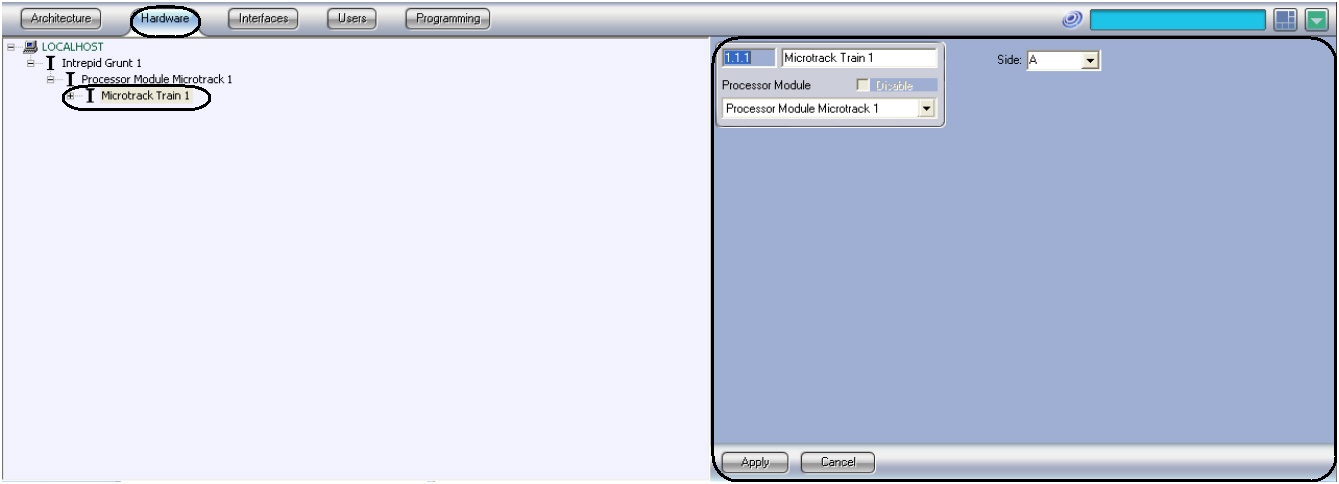

To configure a Microtrack Train object in ACFA PSIM, use the settings panel of the relevant Microtrack Train object. To find this object, go to the Settings dialog box, click the Hardware tab, and browse the object tree of the relevant Microtrack Processor Module object.

Note.

A Microtrack processor module supports two trains (A, B). Any larger number of trains will cause them to be ignored by the system.

To configure a Microtrack train:

  1. Go to the settings panel of the relevant Microtrack Train object.

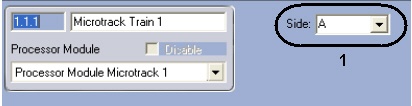

  2. In the Side drop-down menu, select the ID of a Microtrack cable (1).
  3. Click Apply.

Configuration of the Microtrack train is now complete.
