Configuration of the logical condition for terms processing is carried out in the following order:

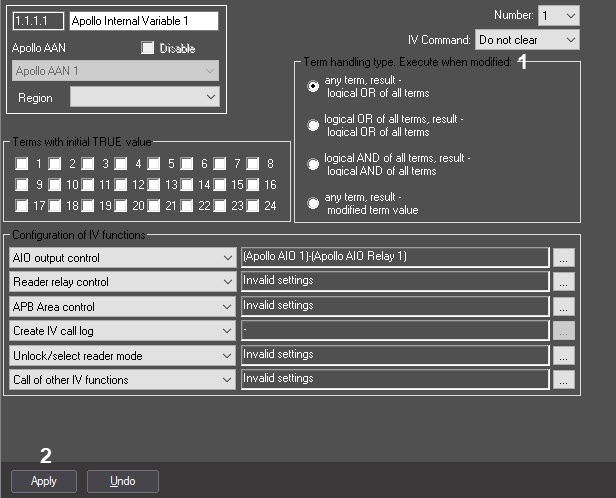

  1. Go to the settings panel of the Apollo Internal Variable object.

  2. Set the Term handling type. Execute when modified switch to one of the positions described in the table below (1).

    Switch position

    Description

    any term, result—logical OR of all terms

    Actions specified in the internal variable will be executed when any term is changed, provided that the logical OR of all terms is TRUE

    logical OR of all terms, result—logical OR of all terms

    Actions specified in the internal variable are performed if at least one term is TRUE

    logical AND of all terms, result—logical AND of all terms

    Actions specified in the internal variable are performed if all terms are TRUE

    any term, result—modified term value

    Actions specified in the internal variable will be performed when any term is changed

  3. Click the Apply button (2).
  4. To save the changes to the controller, write configuration to hardware.

Configuring logical condition for terms processing is completed.
