To work with the Axis (AxACFA) integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

To configure the Axis (AxACFA) parent object, do the following:

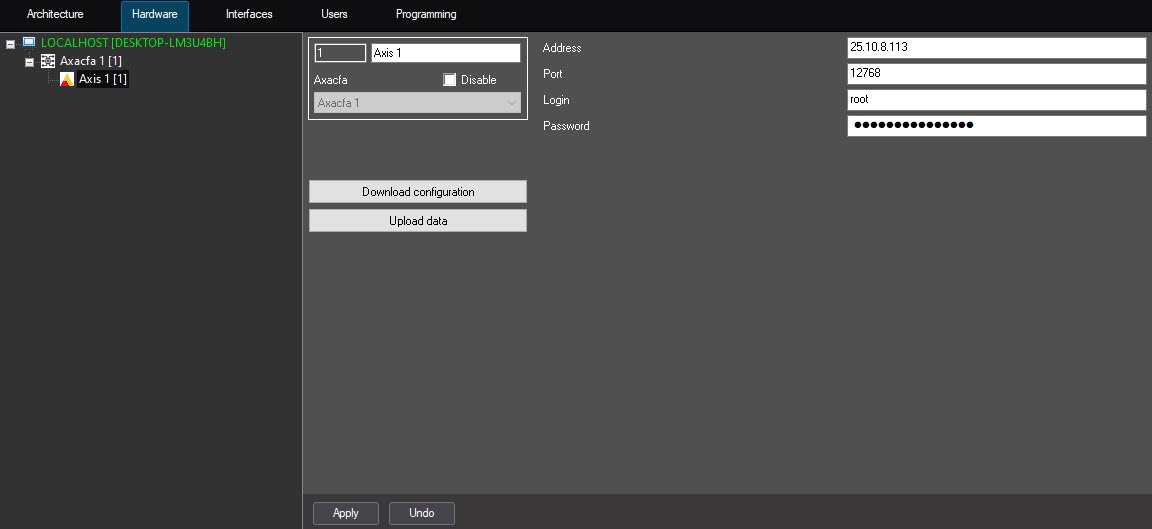

  1. Create the Axis parent object on the basis of the Axacfa object on the Hardware tab of the System settings window.

  2. In the Address field, specify the IP address of the Axis device.
  3. In the Port field, specify the number of the port to connect to the Axis device.
  4. In the Login and Password fields, specify the username and password to connect to the Axis device. By default, login and password are root.
  5. Click the Apply button to save the connection settings.
  6. Click the Download configuration button to download the configuration and build the hardware tree.
    A hardware tree will be built:

  7. Click the Upload data button to upload user credentials.

Configuration of the Axis (AxACFA) parent object is complete.
