Objects corresponding to the BACnet devices are created automatically when you search for them (see Activation of the BACnet Wrapper integration module and search for BACnet devices). No additional configuration is required.

To add or configure a BACnet device manually, do the following:

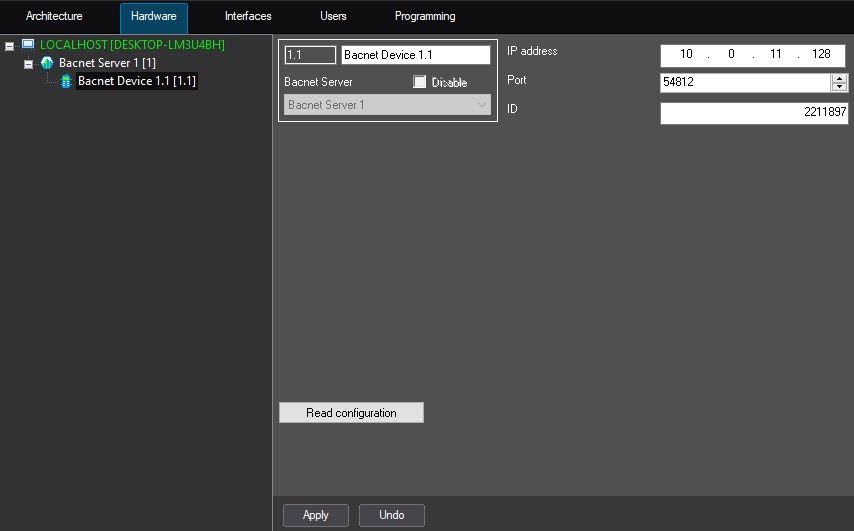

  1. Go to the settings panel of the Bacnet Device object that is created on the basis of the Bacnet Server object.
  2. In the IP address field, enter the IP address of the BACnet device that you can get from the BACnet software.
  3. In the Port field, enter the port of the BACnet device that you can get from the BACnet software.
  4. In the ID field, enter the identification number of the BACnet device that you can get from the BACnet software.
  5. Click the Apply button to save the changes.
  6. Click the Read configuration button to read the configuration of the BACnet device and build a child object tree.

Configuration of the BACnet device is complete.
