You can create the GD Zone object on the basis of the GD RIO object. To configure the GD Zone object, do the following:

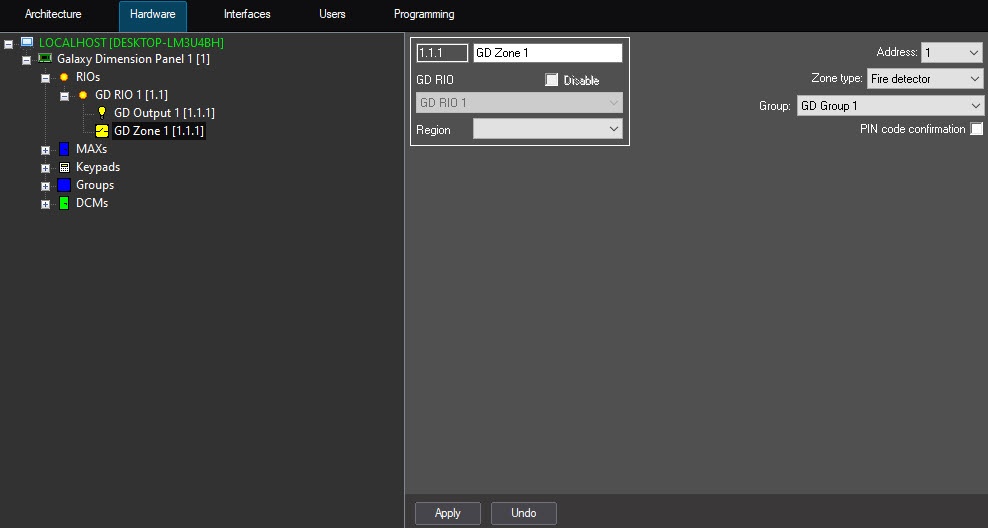

  1. Go to the settings panel of the GD Zone object.
  2. From the Address drop-down list, select the address displayed for the specific zone in the menu of the operator of the Galaxy Dimension Panel.
  3. From the Zone type drop-down list, select the type of zone: Barrier, Battery monitor, Button, Ceiling pir, Emergency button, Fire detector, High voltage monitor, Lock monitor, Low voltage monitor, Magnetic contact, Manual call, Panic alarm, Pir detector, Seismic detector.
  4. From the Group drop-down list, select the group to which the zone belongs.
  5. Set the PIN code confirmation checkbox to confirm operations using a PIN code.
  6. Click the Apply button to save the changes.

Configuring the Galaxy Dimension zones is completed.
