The Nedap AEOS ACS connection is configured as follows:

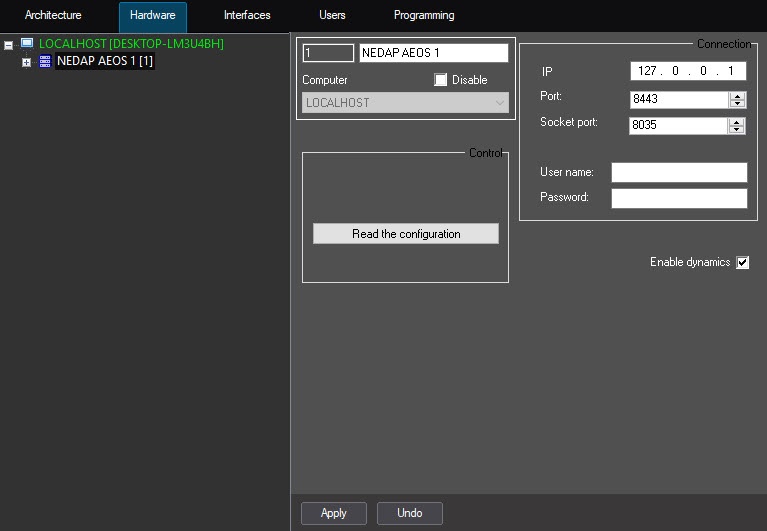

  1. Go to the settings panel of the Nedap AEOS object, which is created on the basis of the Computer object on the Hardware tab of the System Settings dialog box.

  2. In the IP field, specify the IP address of the Nedap AEOS ACS server.

  3. In the Port field, specify the port number of the Nedap AEOS ACS server.

  4. In the Socket port field, specify the port number of the socket of the Nedap AEOS ACS server.

  5. In the User name and Password fields, specify the login and password for connecting to the Nedap AEOS ACS.

  6. Click the Read the configuration button to read the configuration of the Nedap AEOS ACS and build the corresponding tree of objects.

  7. Set the Enable dynamics checkbox if it is necessary to enable dynamic user update.

  8. Click the Apply button to save the changes.

The Nedap AEOS ACS connection is now configured.
