The Satel INTEGRA panel connection is performed on the settings panel of the Satel Panel object created on the basis of the Computer object on the Hardware tab of the System Settings dialog.

Attention!

The identifier of the Satel Panel object must be a natural number.

The panel may be connected to the ACFA PSIM Server via RS-232 or Ethernet interfaces.

Connection over RS-232

To connect over RS-232, do the following:

  1. Go to the settings panel of the Satel Panel object.

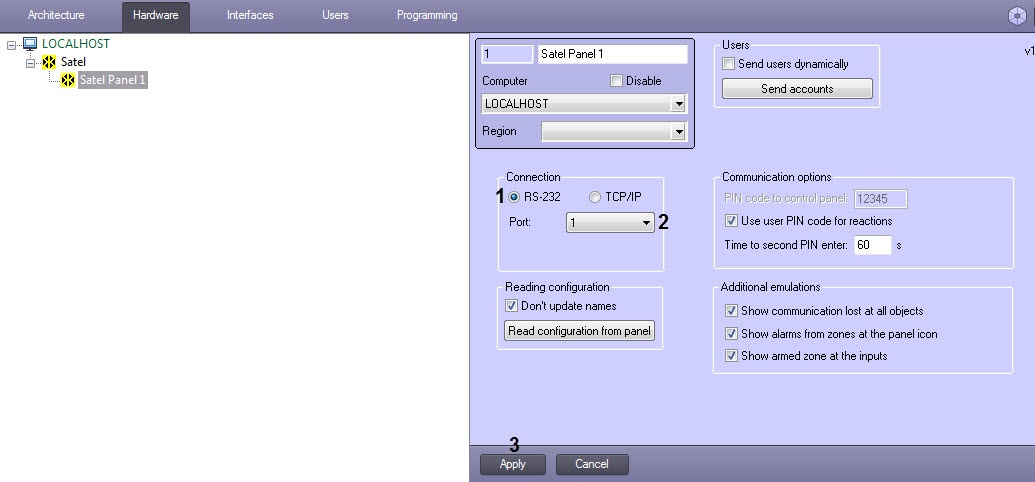

  2. Select the RS-232 radio button in the Connection section (1).
  3. In the Port list, select the COM-port used for connection (2).
  4. Click Apply (3).

Configuring the Satel INTEGRA panel connection is complete.

Connection over Ethernet

To connect over Ethernet, do the following:

  1. Go to the settings panel of the Satel Panel object.

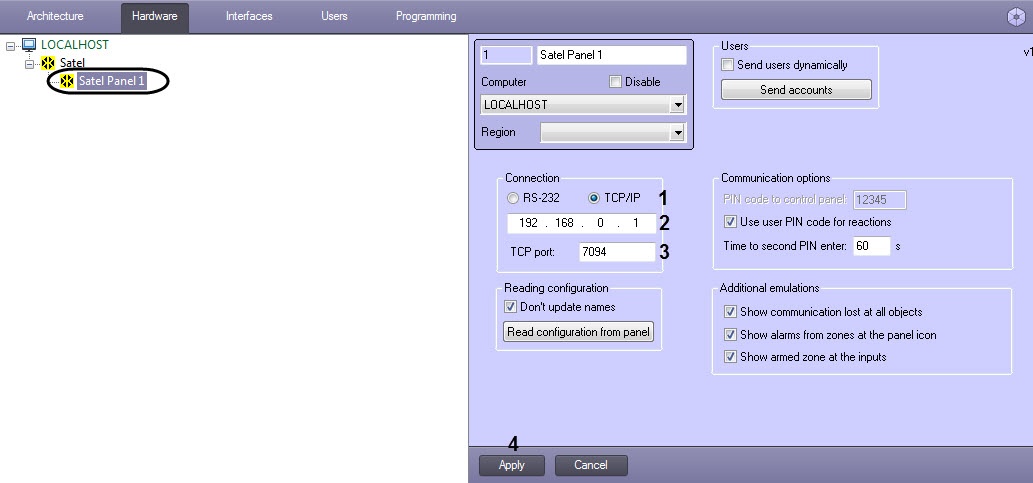

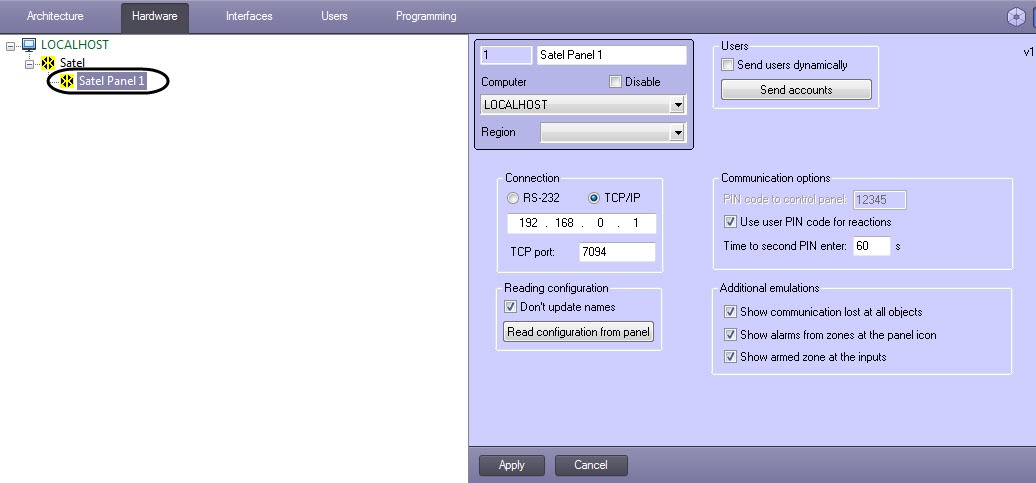

  2. Select the TCP/IP radio button in the Connection section (1).
  3. Enter the IP address of the panel in the field below (2).
  4. In the TCP port field, enter the connection port (3).
  5. Click Apply (4).

Configuring the Satel INTEGRA panel connection is complete.
