The connection between the OnGuard integration module and ACFA PSIM is configured on the settings panel of the OnGuard object. Create this object on the basis of the Computer object on the Hardware tab of the System settings window.

Attention!

Only one OnGuard parent object is supported in the distributed system, that is, ACFA PSIM can only interact with one OnGuard server.

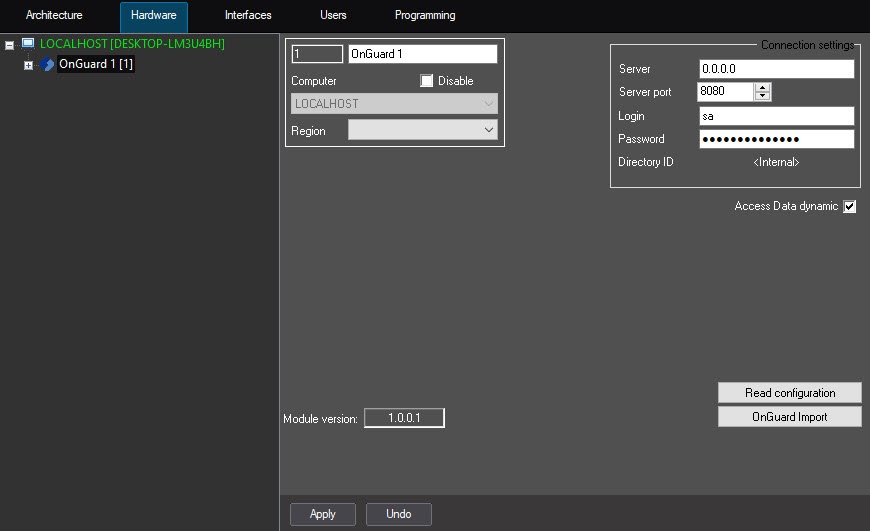

To configure the connection between the OnGuard integration module and ACFA PSIM, do the following:

  1. Go to the settings panel of the OnGuard object.
  2. In the Server field, enter the OnGuard server IP address or DNS name.
  3. In the Server port field, enter the OnGuard server port.
  4. In the Login field, enter the user name of the OnGuard server user.
  5. In the Password field, enter the password of the OnGuard server user.
  6. The Directory ID field shows the directory name in terms of the OnGuard server. Note that only the default “Internal” directory can be used.
  7. Click the Apply button to save the settings.

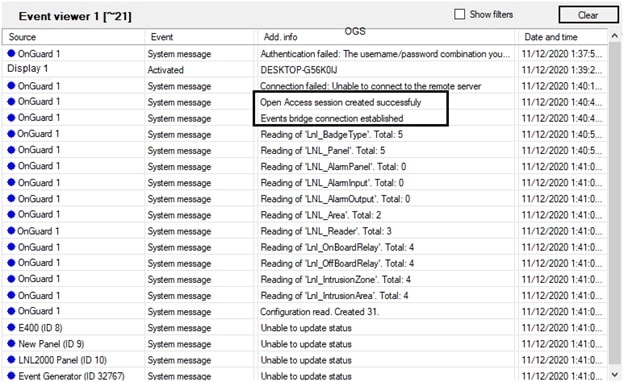

If the connection is established successfully, the following messages are displayed in the Event Viewer:

  • OnGuard: Open Access session created successfully
  • OnGuard: Events bridge connection established
