Documentation for ACFA PSIM 1.3.

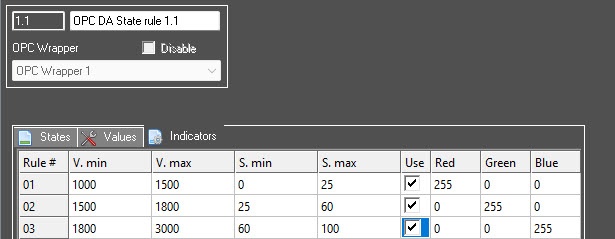

To configure this rule, go to the Indicators tab of the settings panel of the OPC DA State rule object. Description of parameters is given in the table. You can specify up to 10 indicator states.
Parameter | Description |
Rule # | Rule number |
V. min, V. max | Range of element values for the rule |
S. min, S. max | Range of values that the indicator accepts according to the rule |
Usage | Activate the interval |
Red, Green, Blue | Specify the color of the indicator according to the RGB model |
Attention!
To save the changes, click the Apply button.
Indicator and its value are displayed on the map (see Working with OPC-server elements of Data Access standard on the map).
Let's consider the work of this rule on an example.
There are three intervals of element values depending on which the indicator takes a certain proportional value and color. To calculate the exact value of the indicator, use the following formula:
where V is the exact value of the element.
For example, if V=1300, then the indicator value
the indicator color is red.
If V=2200, then the indicator value
(approximated),
the indicator color is blue.
Configuration of the rule of changing the indicator state is complete.
