The following cases of user synchronization are supported:

  1. Import of users (cardholders), badges, access levels, time zones from the OnGuard integration module to ACFA PSIM.

  2. Dynamic export of newly added users (cardholders), badges and access levels from ACFA PSIM to the OnGuard integration module.

    Note

    Time zones cannot be exported from ACFA PSIM to the OnGuard integration module due to Open Access interface limitations.

To configure user synchronization between the OnGuard integration module and ACFA PSIM, do the following:

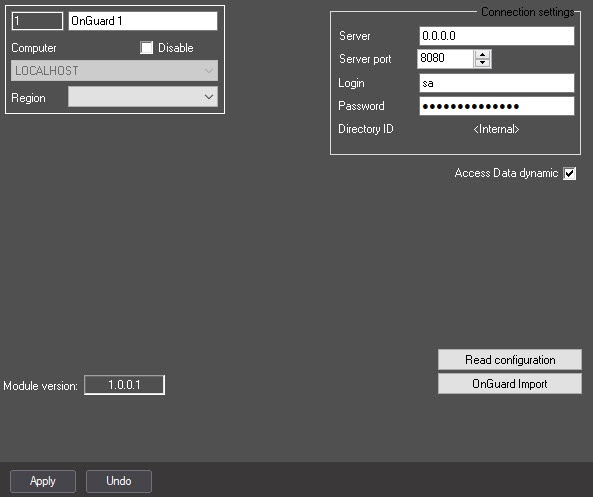

  1. Go to the settings panel of the OnGuard object.
  2. Click the OnGuard Import button in order to import users (cardholders), badges, access levels, time zones from the OnGuard integration module to ACFA PSIM
  3. Set the checkboxes next to the elements that you want to import and click the OK button.

    Note, that if you want to import Access Levels, then you must also import Timezones, or if you want to import Cardholders, then you must also import Timezones, Access Levels and Departments. This is why all checkboxes above the selected checkbox are automatically set and not editable.

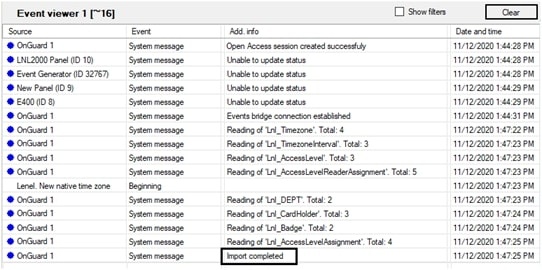

  4. The import starts after you click the OK button. The Event Viewer shows how many elements of each type were imported. When the import completes successfully, the Import completed message appears in the Event Viewer:

    After access data are imported, all elements can be managed in the Access Manager (see Managing the OnGuard badges on the Identifiers tab in the Access Manager).

  5. Make sure that Access Data dynamic checkbox is set to enable dynamic export of newly added users (cardholders), badges and access levels from ACFA PSIM to the OnGuard integration module.
  6. Click the Apply button to save the settings.
