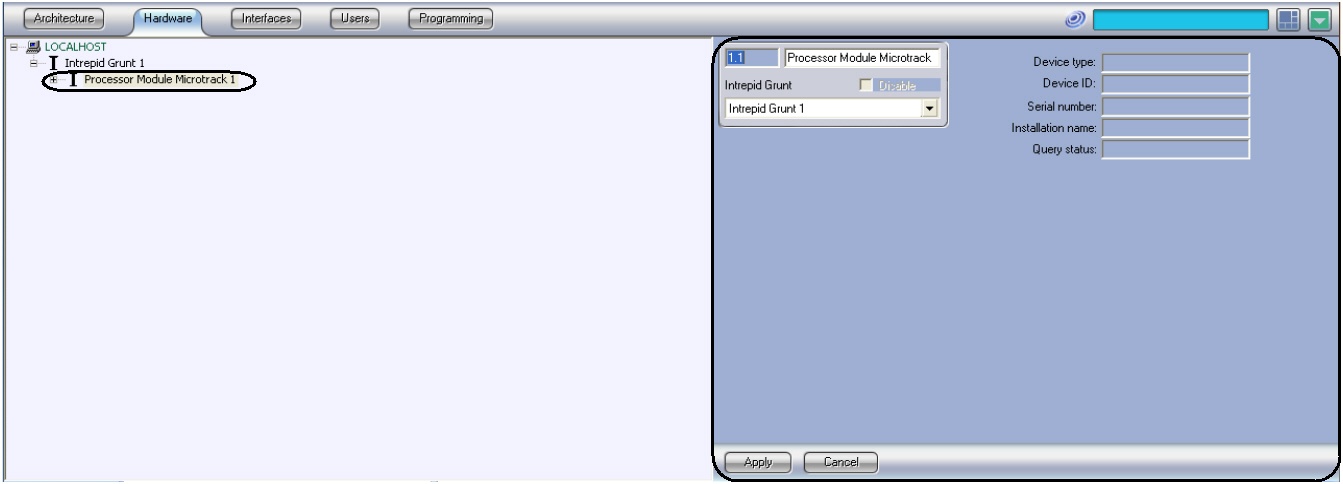

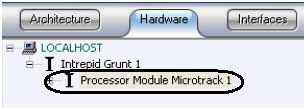

To create a Microtrack Processor Module in ACFA PSIM, in the Hardware tab of the Settings dialog box, go the the Intrepid Grunt object.

Note.

You can create one and only oneMicrotrack Processor Module object for a single Intrepid Gruntobject. Other objects of this type will be ignored by the system.

After an object is created, its settings panel displays information about the connected Microtrack processor module.

To view information about a Microtrack Processor Module:

  1. Go to the Microtrack Processor Module object's settings panel.

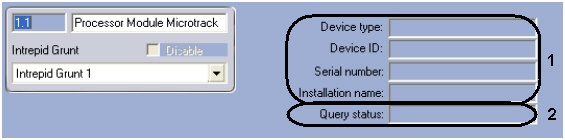

  2. View information about the connected processor module: type, ID, serial number, and installation name (1).

    Note.

    This information is displayed if the hardware has been connected correctly.

  3. View information about the status of processor module queries in the Query status field (2).

Information about the Microtrack processor module is now provided.
