After the connection is established, use the following procedure to read objects hierarchy from the OnGuard integration module to ACFA PSIM:

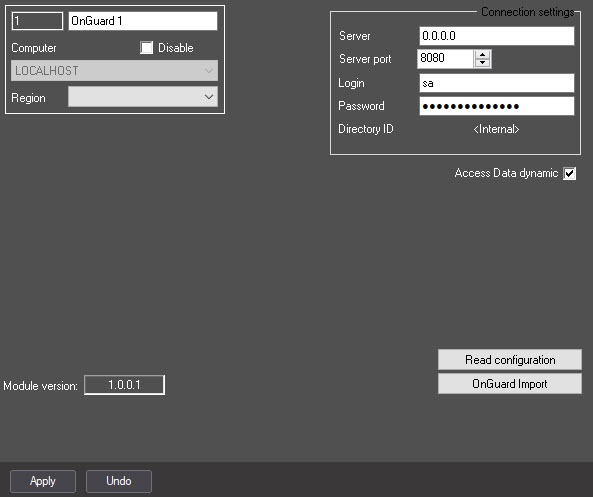

  1. Go to the settings panel of the OnGuard object.
  2. Click the Read configuration button.

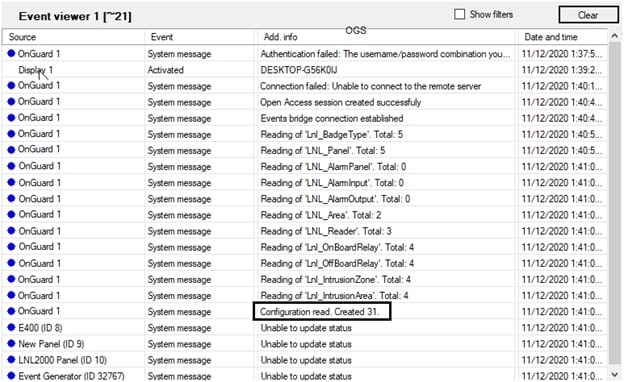

As a result, the Configuration read. Created N message appears in the Event Viewer.

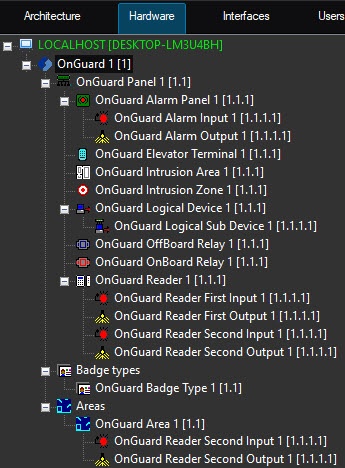

N is the number of objects created on the basis of the OnGuard object on the Hardware tab.

The names of these objects correspond to the objects in the OnGuard integration module.

Note

Do not create the OnGuard integration module objects manually except for the parent object. This is useless since the manually created objects do not correspond to any objects in the OnGuard integration module. However, if you misconfigure the objects IDs in ACFA PSIM, for example, it can cause incorrect system operation.
