To search FSG devices in local network, do the following:

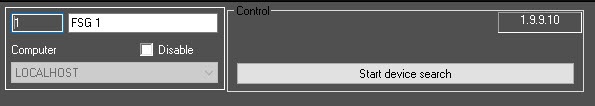

  1. Go to the settings panel of the FSG object.
  2. Click the Start device search button.

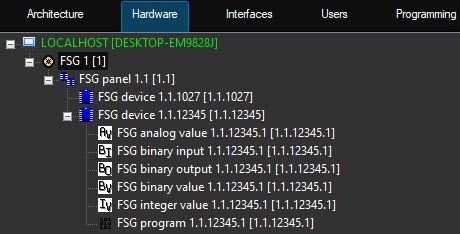

Search of FSG devices will be performed and corresponding objects will be created in the object tree as a result.

Note.

If there are several network connections on the PC where search for devices is performed it is recommended to disable all connections except that connection which provides connection to local network with FSG devices.

It is possible to receive the following information on the settings panel of created object:

  1. Parameters of connection IP panel of FSG device are displayed in the settings panel of the FSG object.

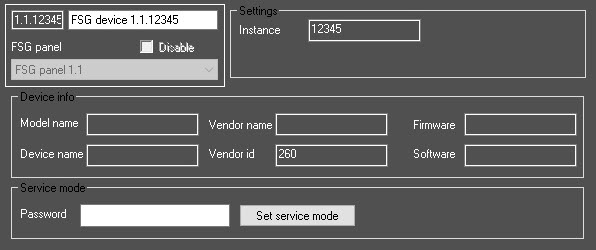

  2. Information about found device is displayed in the settings panel of the FSG device object.

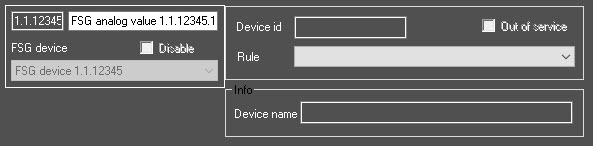

  3. On the settings panel of objects corresponding to channels of the FSG devices there is the Out of service checkbox which is not available for editing and has informing manner. The checkbox is set if channel of device is not in use. In such case value from channel is not read.

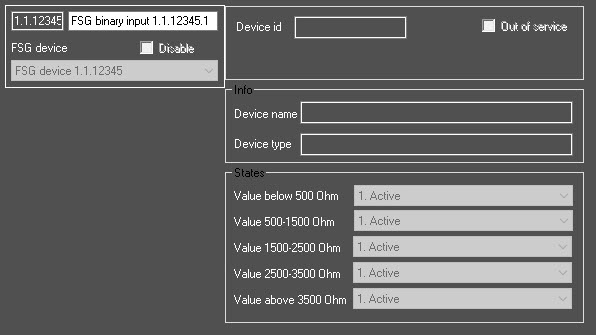

  4. States of the corresponding object are displayed on the settings panels of the FSG binary input object.
