To set a regular rule:

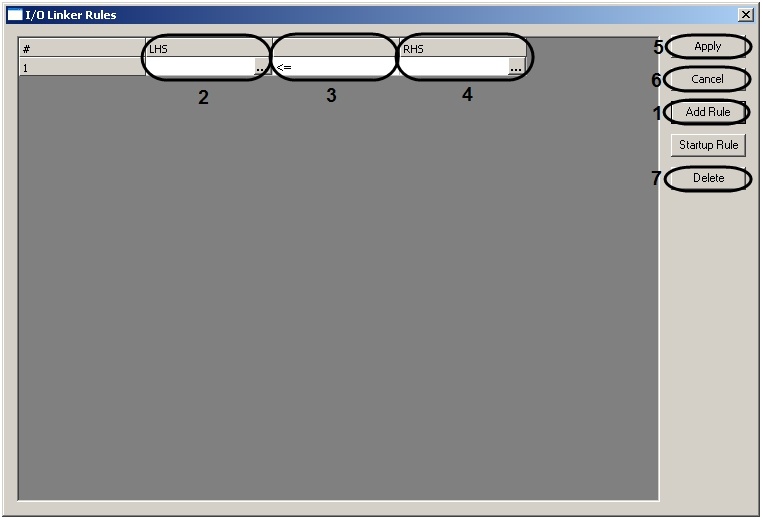

  1.  In the I/O Linker Rules window, click Add Rule (1).

    Note:

    To delete a rule, select the relevant row in the table and click Delete(7).

  2. To set the rule's left-hand side, go to the LHS column and click  (2).
    The I/O Linker -Output windows opens.

    1. In the Object type drop-down list, select the type of the rule's left-hand side object(1).
    2.  In the Output drop-down list, select the left-hand side object(2).
    3.  Click OK (3).
  3. Set the rule's "sign" (the equality or strict inequality of the rule's sides) (3).
  4. To set the rule's right-hand side, go to the RHS column and click  (4).

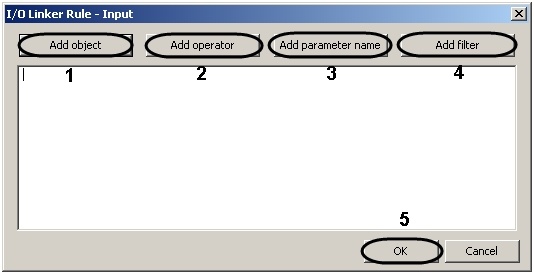

    The I/O Linker Rule -Input windows opens.

    1. Add the right-hand side object: click Add object (1).

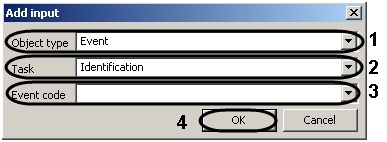

      The Add input window opens.

      1. In the Object type drop-down list, select the type of the rule's right-hand side object(1).
      2. In the Task drop-down list, select the task of the rule's right-hand side object(2).
      3. In the Event code drop-down list, select the code for the event of the rule's right-hand side object(3).
      4. Click OK (4).
    2. Add the rule's right-hand side operator: click Add operator (2).
      The Add operator window opens.

      1. In the drop-down list, select the operator of the rule's right-hand side object(1).
      2. Click OK (2).
    3. Add a parameter: click Add parameter name ( 3).
      The Add parameter name window opens.

      1. In the drop-down list, select the parameter (1).
      2. Click OK (2).
    4. Add the rule's right-hand side event filter: click Add filter (4).

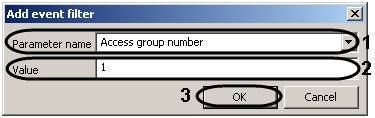

      The Add event filter window opens.

      1. In the Parameter name drop-down list, select the required parameter (1).
      2. In the Value, enter the parameter name (2).
      3. Click OK (3).

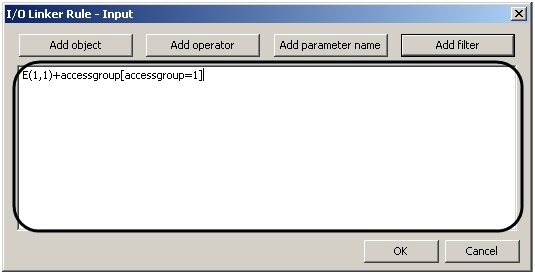

      After you do the above actions, you see the rule's right-hand side formula in the text box.
    5. Click OK.
  5. Click Apply to save the changes. This also brings you back to the controller's setup panel (5).

Note:

To come back to the controller's setup panel without saving the changes, click Cancel (6).

The regular rule is now set.
