To set a startup rule:

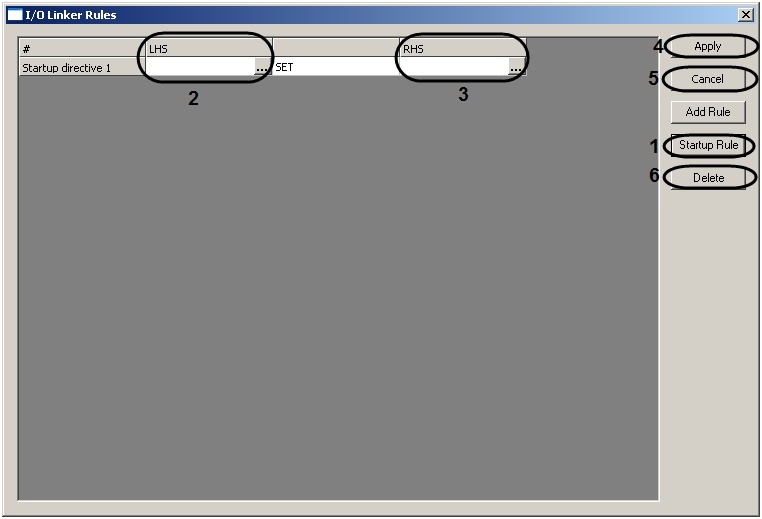

  1.  In the I/O Linker Rules window, click Startup Rule (1).

    Note:

    To delete a rule, select the relevant row in the table and click Delete(6).

  2. To set the rule's left-hand side, go to the LHS column and click  (2).

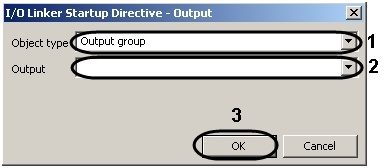

    The I/O Linker Startup Directive -Output windows opens.

    1.  In the Object type drop-down list, select the type of the rule's left-hand side object(1).
    2. In the Output drop-down list, select the left-hand side object(2).
    3. Click OK (3).
  3. To set the rule's right-hand side, go to the RHS column and click  (4).

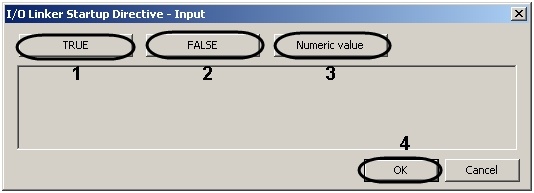

    The I/O Linker Startup Directive -Input windows opens.
  4. Select the value for the rule's left-hand side object: click TRUE, FALSE, or Numeric value (1-3).
  5. Click OK (4).
  6. Click Apply to save the changes. This also brings you back to the controller's setup panel (5).

Note:

To come back to the controller's setup panel without saving the changes, click Cancel (6).

The startup rule is now set.
