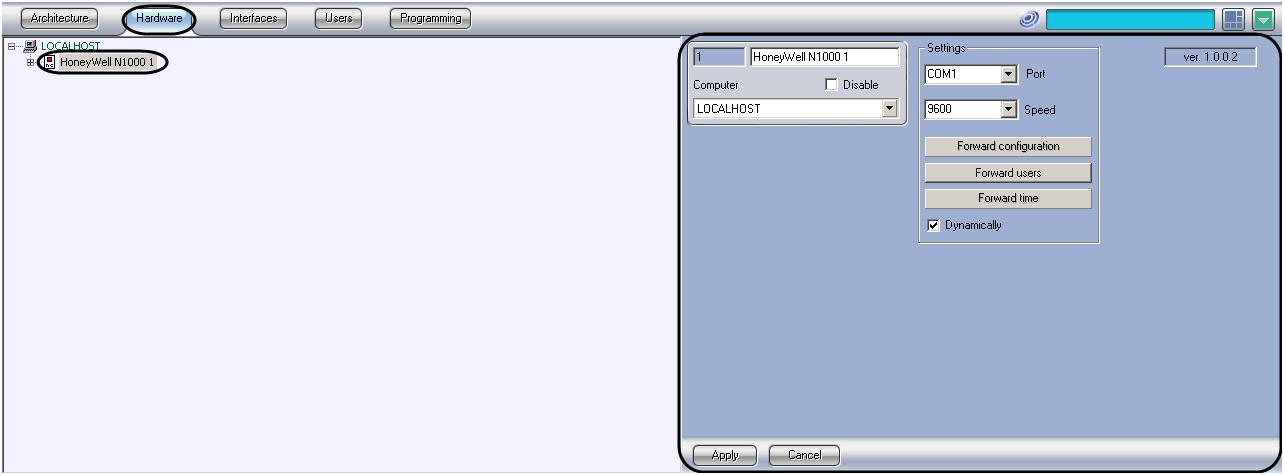

Setting up connection of HoneyWell N-1000 ACS to Axxon PSIM Server is carried out on the setting panel of HoneyWell N1000 object. This object is created on the basis of Computer object in Hardware tab of System setting dialog box.

Setting up connection of HoneyWell N-1000 ACS to Axxon PSIM Server is carried out the following way:

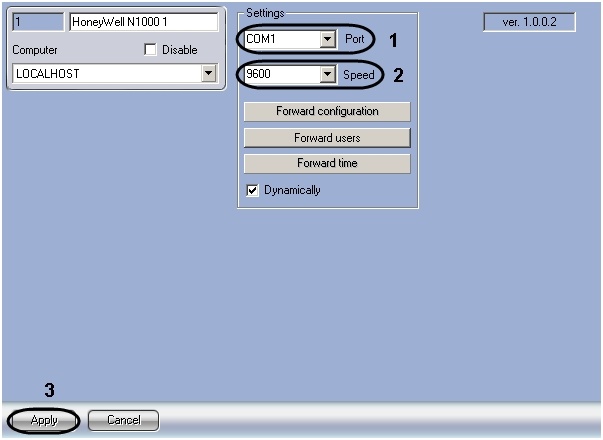

  1. Go to setting panel of HoneyWell N1000 object.
  2. From Port dropdown list select COM port of HoneyWell N-1000 ACS connection to Axxon PSIM Server (1).
  3. From Speed dropdown list select speed of data transfer through COM port of HoneyWell N-1000 ACS connection to Axxon PSIM Server (2).
  4. Click Apply (3).

Setting up connection of HoneyWell N-1000 ACS to Axxon PSIM Server is completed.
