Setting up controllers of HoneyWell N-1000 ACS is carried out on the setting panel of N1000 panel object. This object is created on the basis of HoneyWell N1000 object in Hardware tab of System setting dialog box.

Setting up controller of HoneyWell N-1000 ACS is carried out the following way:

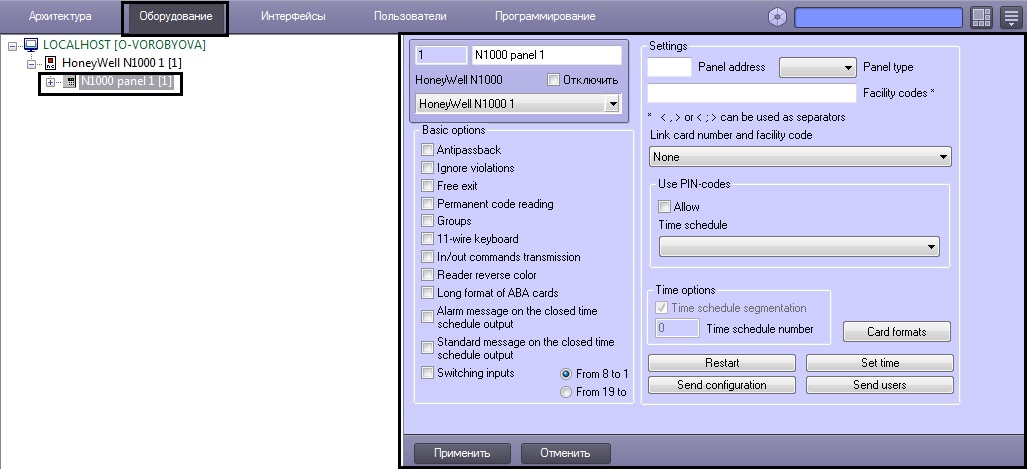

  1. Go to setting panel of N1000 panel object.

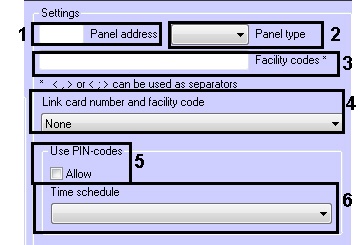

  2. Set connection parameters of controller:
    1. Set controller address in Panel address (1).
    2. From Panel type dropdown list select type of connected controller (2).
  3. In Facility codes set codes used by organization (facility codes) (3).

  4. Select format of linking access card number and organization code (facility code) from the corresponding dropdown list (4).

    Note.

    If there is no need to link access card number and organization code it’s necessary to set None value.
  5. Set up user access through PIN code:
    1. Set Allow checkbox if it’s necessary to ask PIN code of the user while giving the access (5).
    2. From the corresponding dropdown list select time zone during which it’s necessary to ask PIN code of the user while giving the access (6).
  6. Set up basic controller options:

    1.  If it’s necessary to control double-pass set the corresponding checkbox (1).
    2. Set Ignore violations checkbox if there is no need to store user violations (2).
    3. Set Free exit checkbox if it’s necessary to ask access while passing to exit (3).
    4. Set Permanent code-reading checkbox if it’s necessary to read card code permanently and regardless of exit impulse duration (4).
    5. Set Groups checkbox if it’s necessary to create groups of exits (5).
    6. If 11-wires keyboard is used in controller it’s necessary to set the corresponding checkbox (6).
    7. Set In/out commands transmission checkbox if it’s necessary to transmit In and Out commands (7).
    8. If it’s necessary to use reader reverse color set the corresponding checkbox (8).

    9. If it’s necessary to use ABA-card long format set the corresponding checkbox (9).

      Note.

      ABA is the MSR ABA TK2 emulation interface  for magnetic access cards.
    10. If it’s necessary to create alarm message on exiting the closed time zone set the corresponding checkbox (10).
    11. If it’s necessary to create standard message on exiting the closed time zone set the corresponding checkbox ( 11).
    12. If it’s necessary to switch entrances set the corresponding checkbox and select necessary type (12).

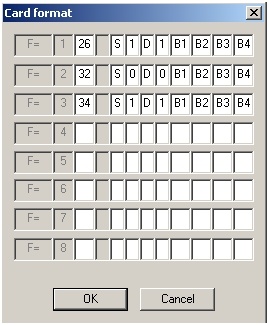

  7. Click  and set up used formats of access cards of Wiegand type. After setting click OK in order to save formats.

    Note.

    3 formats card of Wiegand type are set on default: 26-,32- and 34-bit.

    Reader / Number of bit in access card

    Access card format

    CR-1 Wiegand Card Swipe / 26 bit-generic

    26-S-1-D-1-B1-B2-B3-B4

    NR-1 Magstripe, NR5 / 32 bit

    32-S-0-D-0-B1-B2-B3-B4

    HID / 34 bit

    34-S-1-D-1-B1-B2-B3-B4

    CI-1 Wiegand Card Insert / 26 bit

    26-I-1-D-1-B1-B2-B3-B4

    PR-1-280 Cotag Proximity / 32 bit

    32-S-0-D-0-B1-B2-B3-B4

    HG-1 Hand Geometry / 32 bit

    32-S-0-D-0-B1-B2-B3-B4

    5 Conductor Keypad / 32 bit

    32-S-0-D-0-B1-B2-B3-B4

    Dorado Magstripe Cards / 34 bit

    34-S-1-D-0-B1-B2-B3-B4

    Sielox Wiegand Cards / 34 bit

    34-S-1-D-1-B1-B2-B3-B4

    Sielox Proximity Cards / 32 bit

    32-S-0-D-0-B1-B2-B3-B4

  8. On setting panel of N1000 panel object click Apply to save changes.

Setting up controller of HoneyWell N-1000 ACS is completed.
