The settings panel of the Access Manager object

The settings panel of the Access Manager interface object is shown in the figures.

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Position group
1	Fix position	Set the checkbox	Set the checkbox if you want to specify the coordinates and the size of the Access Manager window on the screen and prohibit its movement	Boolean type	Clear	Set—position of the Access Manager window is fixed Clear—position of the Access Manager window can be changed
2	Monitor	Select the value from the drop-down list	Sets the number of the monitor on which the Access Manager window will be displayed	List of available computer monitors	Monitor 1	Depends on the number of the connected computer monitors
3	X	Enter the value in the field	Sets the coordinate of the upper left corner of the Access Manager window along the horizontal X axis	% of screen width	0	From 0 to M*100, where M is a number of installed computer monitors
	Y	Enter the value in the field	Sets the coordinate of the upper left corner of the Access Manager window along the vertical Y axis	% of screen height	0	From 0 to M*100, where M is a number of installed computer monitors
	W	Enter the value in the field	Sets the width of the Access Manager window	% of screen width	0	From 0 to M*100, where M is a number of installed computer monitors
	H	Enter the value in the field	Sets the height of the Access Manager window	% of screen height	0	From 0 to M*100, where M is a number of installed computer monitors
Outside the groups
4	Create new users with antipassback	Set the checkbox	Sets the default value for the user antipassback parameter	Boolean type	Clear	Set—by default, the users are created with enabled antipassback Clear—by default, the users are created with disabled antipassback
5	New root departments visible	Set the checkbox	Sets the availability of the created departments in the Access Manager that are located in the root of the hierarchy	Boolean type	Set	Set—new departments created in the root of the hierarchy are available in the Access Manager Clear—new departments created in the root of the hierarchy aren't available in the Access Manager

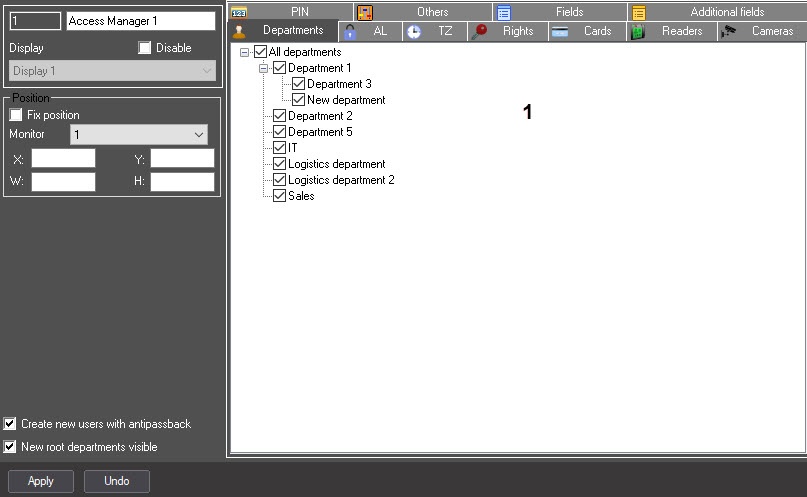

The Departments tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	Departments tree	Set the checkbox	Sets the departments available in the Access Manager window	Boolean type	Set of boolean variables	Department will be available in the Access Manager window if you set the checkbox next to it

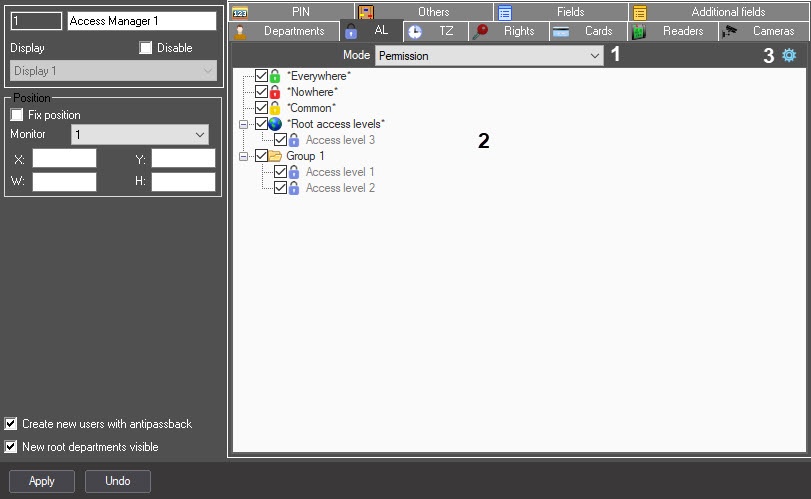

The AL tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	Mode	Select the value from the list	Sets the access restriction mode to the access levels in the Access Manager interface object	NA	Prohibition	Prohibition—restrict the access to the selected access levels Permission—allow the access to the selected access levels
2	Access levels tree	Set the checkbox	Specifies the access levels, the access to which must be configured	Boolean type	Set of boolean variables	If the checkbox is set for the access level, the selected access restriction mode will be applied to it in the Access Manager interface object
3	The action button	Select the value from the list	Opens a list of actions for managing the access levels tree	NA	NA	Minimize—minimizes all access levels in the tree Expand—expands all access levels in the tree Select all—sets the checkboxes for all access levels Remove all—clears checkboxes for all access levels Search—opens the Access level search or folder search window for access level or folder searching by the name or identifier

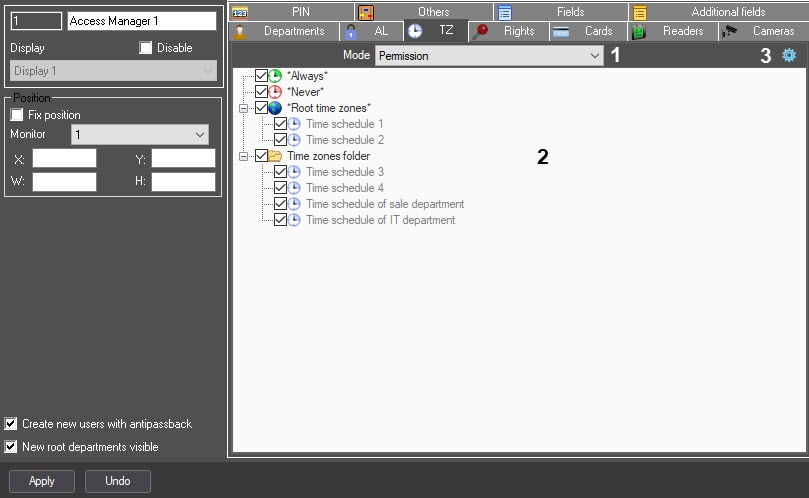

The TZ tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	Mode	Select the value from the list	Sets the access restriction mode to the time zones in the Access Manager interface object	NA	Prohibition	Prohibition—restrict the access to the selected time zones Permission—allow the access to the selected time zones
2	Time zones tree	Set the checkbox	Specifies the time zones, the access to which must be configured	Boolean type	Set of boolean variables	If the checkbox is set for the time zone, the selected access restriction mode will be applied to it in the Access Manager interface object
3	The action button	Select the value from the list	Opens a list of actions for managing the time zones tree	NA	NA	Minimize—minimizes all time zones in the tree Expand—expands all time zones in the tree Select all—sets the checkboxes for all time zones Remove all—clears the checkboxes for all time zones Search—opens the Time zone search or folder search window for time zone or folder searching by the name or identifier

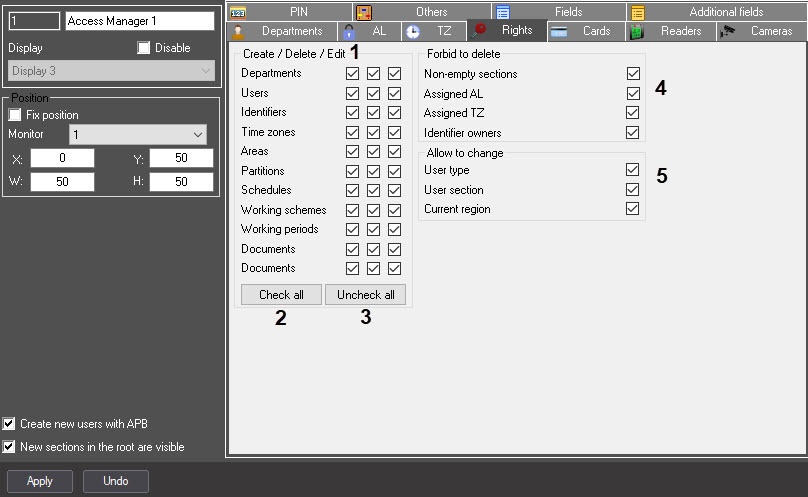

The Right tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Create / Delete / Edit group
1	Create	Set the checkbox	Enables the ability to create the corresponding object in the Access Manager window	Boolean type	Set	Set—creating the corresponding object from the Access Manager window is allowed Clear—creating the corresponding object from the Access Manager window is forbidden
	Delete	Set the checkbox	Enables the ability to delete the corresponding object in the Access Manager window	Boolean type	Set	Set—deleting the corresponding object from the Access Manager window is allowed Clear—deleting the corresponding object from the Access Manager window is forbidden
	Edit	Set the checkbox	Enables the ability to edit the corresponding object in the Access Manager window	Boolean type	Set	Set—editing the corresponding object from the Access Manager window is allowed Clear—editing the corresponding object from the Access Manager window is forbidden
2	Check all	Click the button	Sets all checkboxes in the Create / Delete / Edit group	NA	NA	NA
3	Uncheck all	Click the button	Clears all checkboxes in the Create / Delete / Edit group	NA	NA	NA
The Forbid to delete group
4	Non-empty departments	Set the checkbox	Forbids to delete departments if there are users in them	Boolean type	Clear	Set—non-empty departments cannot be deleted Clear—non-empty departments can be deleted
	Assigned AL	Set the checkbox	Forbids to delete access levels if they are assigned to a user or department	Boolean type	Clear	Set—assigned access levels cannot be deleted Clear—assigned access levels can be deleted
	Assigned TZ	Set the checkbox	Forbids to delete time zones if they are assigned to an access levels	Boolean type	Clear	Set—assigned time zones cannot be deleted Clear—assigned time zones can be deleted
The Allow to change group
5	User type	Set the checkbox	Enables the ability to change the user type	Boolean type	Clear	Set—the user type change is allowed Clear—the user type change is not allowed
	User department	Set the checkbox	Enables the ability to change the user department	Boolean type	Clear	Set—the user department change is allowed Clear—the user department change is not allowed
	Current region	Set the checkbox	Enables the ability to change the current region	Boolean type	Clear	Set—the current region change is allowed Clear—the current region change is not allowed

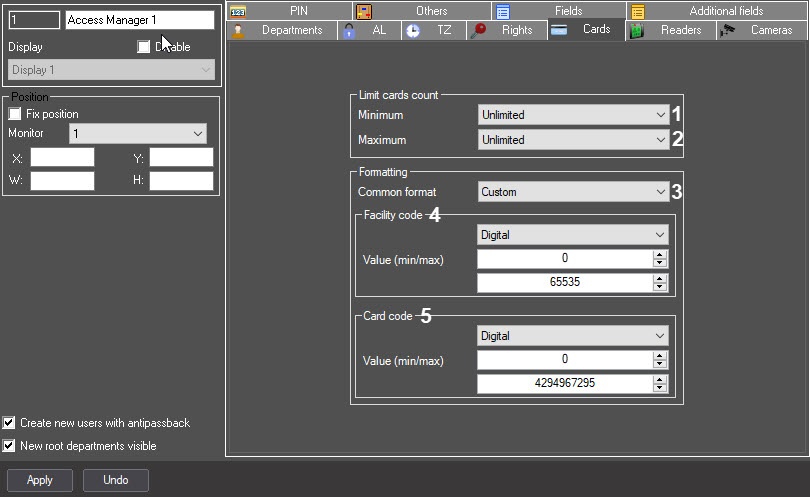

The Cards tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Limit cards count group
1	Minimum	Select the value from the list	Sets the minimum number of access cards that must be assigned to the user	List of values of the minimum number of access cards of a user	Unlimited	from 1 to 10—if the specified number of access cards is not assigned to the user, then this user cannot be saved in the Access Manager interface object Unlimited—an unlimited number of access cards can be assigned to the user Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object
2	Maximum	Select the value from the list	Sets the maximum number of access cards that must be assigned to the user	List of values of the maximum number of access cards of a user	Unlimited	from 1 to 10—if the user is assigned more than the specified number of access cards, then this user cannot be saved in the Access Manager interface object Unlimited—an unlimited number of access cards can be assigned to the user Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object
The Formatting group
3	Common format	Select the value from the list	Sets the format of access cards	List of values of access cards fprmats	Default	Default—allows setting an arbitrary value for the facility code and card code. Any letters, digits and characters are allowed Wiegand26—allows entering a 1-byte facility code (from 0 to 255), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved Wiegand32—allows entering a 2-byte facility code (from 0 to 65535), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved Wiegand26 (code only)—the facility code cannot be set, only a 3-byte card code is set (from 0 to 16777215) Wiegand32 (code only)—the facility code cannot be set, only a 4-byte card code is set (from 0 to 4294967295) TouchMemory—the facility code cannot be set, only the 8-byte card code is set. The format is hexadecimal, characters A, B, C, D, E, F are allowed. The code must be eight characters or longer. If the entered card code is less than eight characters long, the the higher order digits are filled with zeros Hikvision—the Hikvision ACS format. It always has a fixed H character in the facility code. The card code is specified by a string with a maximum length of 32 characters Configurable—allows setting the parameters of the facility code (4) and card code (5) Fixed character—the specified single character will always be hard-coded, which cannot be changed in the Access Manager interface object String—allows entering a string of 0 to 255 characters Numeric—allows entering only digits from 0 to 4294967295. Hexadecimal—allows entering digits in HEX format (digits and characters A, B, C, D, E, F) from 0 to 8 bytes long. Fixed number—similar to Fixed character, but instead of a character, a digit between 0 and 4294967295 is used Regular template—allows defining an access card template with specified restrictions, lengths and value ranges

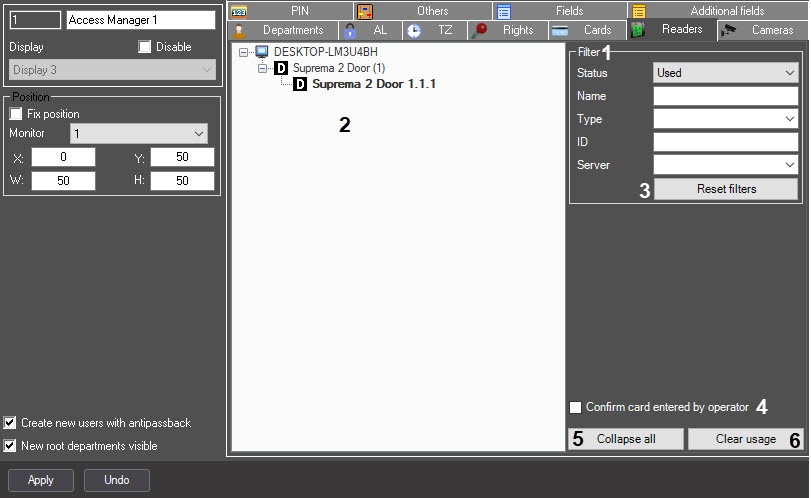

The Readers tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Filter group
	Status	Select the value from the list	Dispays a list of control reader statuses to search by the value of this field	List of control reader statuses	Any	Any—all control readers created in the system Used—only used control readers Not used—only control readers that are not used
	Name	Enter the value in the field	Sets the name of the control reader to search by the value of this field	Latin and Cyrillic alphabet, digits 0-9	NA	NA
	ID	Enter the value in the field	Sets the unique identifier of the control reader to search by the value of this field	Natural number series	NA	NA
	Server	Select the value from the list	Sets the name of the server to search by the value of this field	List of the Server objects	NA	Depends on the number of the Server objects
2	List of control readers	Automatically	Displays the list of control readers used for entering user access cards from the Access Manager	List of readers filtered in step 1	NA	If you select the reader, it is available for entering the user access card or entering the user biometric data
3	Reset filters	Click the button	Resets filters and search result	NA	NA	NA
4	Confirm card entered by operator	Set the checkbox	Sets the requirement to confirm the card code entered by operator	Boolean type	Clear	Set—operator confirmation is required to assign access card to a user Clear—operator confirmation is not required to assign access card to a user
5	Collapse all	Click the button	Collapses the list of readers	NA	NA	NA
6	Clear usage	Click the button	Resets the settings of the control reader list to default values	NA	NA	NA

The Cameras tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Filter group
1	Status	Select the value from the list	Displays the list of statuses of the Camera object to search by the value of this field	List of statuses of the Camera object	Do not use	Any—all cameras created in the system Used—only cameras that are used Unused—only cameras that aren't used
	Name	Enter the value in the field	Sets the name of the camera to search by the value of this field	Latin and Cyrillic alphabet, digits 0-9	NA	NA
	ID	Enter the value in the field	Sets a unique camera identifier to search by the value of this field	Natural number series	NA	NA
	Server	Select the value from the list	Sets the name of the server to search by the value of this field	List of the Server objects	NA	Depends on the number of the Server objects
2	The tree of Cameras objects	Automatically	Displays the list of the Camera objects	List of the Camera objects filtered in step 1	NA	Depends on the number of the Camera objects filtered in step 1
The Settings group
3	Stream	Select the value from the list	Sets the camera stream that will be used to assign photos to users	NA	Do not use	Do not use—camera cannot be used to input a photo Default stream—the default stream of a camera will be used Stream #1—the first stream of a camera will be used Stream #2—the second stream of a camera will be used Stream #3—the third stream of a camera will be used Stream #4—the forth stream of a camera will be used
	Compression	Select the value from the list	Sets the compression level of the selected video stream	List of compression options	Do not compress	Do not compress—compression of the camera video stream is disabled Level 1—the lowest level of video stream compression .... Level 5—the highest level of video stream compression
	Gate	Select the value from the list	Sets the Videogate object used for receiving video signal from camera	List of the Videogate objects created in the system	NA	Depends on the number of the Videogate objects created in the system
4	Collapse all	Click the button	Collapses the list of cameras	NA	NA	NA
5	Clear usage	Click the button	Resets all camera settings to default values	NA	NA	NA

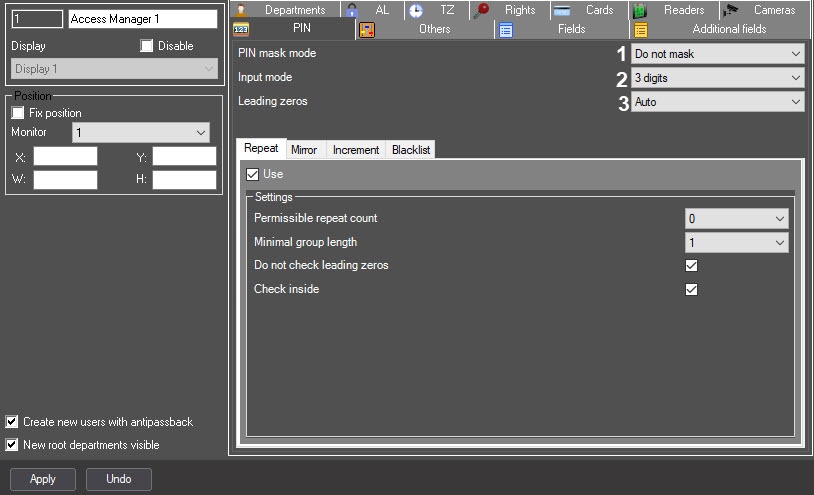

The PIN tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	PIN mask mode	Select the value from the list	Sets the mask mode of the PIN code	List of options for PIN code masking	Mask always	Do not mask—PIN code isn’t masked with dots Mask view—PIN code is masked with dots when reading user data Mask always—PIN code is always masked with dots
2	Input mode	Select the value from the list	Sets the input mode of the PIN code	List of PIN code input modes	Common	Common—any variant of the PIN code is allowed. It is allowed to enter symbols, letters and numbers. If you select this mode, no further settings are required 3 digits—PIN code must contain three digits. ... 9 digits—PIN code must contain nine digits. Range—PIN code is within the specified numeric range
3	Leading zeros	Select the value from the list	Sets the mode of setting zeros at the beginning of the PIN code. The setting is made for all modes except for the Common mode	List of modes for setting zeros at the beginning of the PIN code	Ignore	Ignore—leading zeros aren’t considered as characters Required—leading zeros are considered as characters Auto—leading zeros are entered automatically, completing the PIN code to the required number of characters

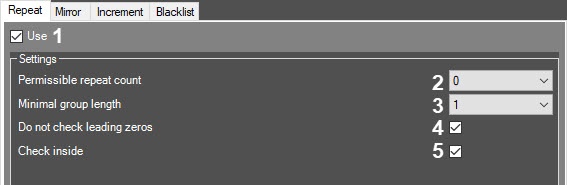

The Repeat tab
1	Use	Set the checkbox	Enables the required PIN check	Boolean type	Clear	Set—the required check is enabled Clear—the required check is disabled
2	Permissible repeat count	Select the value from the list	Sets the maximum number of allowed character repetitions in the PIN code	Digits 0–7	0	Depends on the selected input mode
3	Minimal group length	Select the value from the list	Sets the number of characters in the group to search for repetitions	Digits 1–8	1	Depends on the selected input mode
4	Do not check leading zeros	Set the checkbox	Disregards leading zeros as characters when entering the PIN code	Boolean type	Clear	Set—leading zeros are disregarded Clear—leading zeros aren't disregarded
5	Check inside	Set the checkbox	Enables the corresponding search in the entire PIN code	Boolean type	Clear	Set—search in the entire PIN code Clear—search only from the beginning

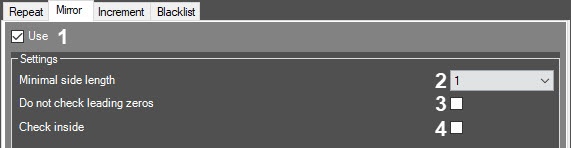

The Mirror tab
1	Use	Set the checkbox	Enables the required PIN check	Boolean type	Clear	Set—the required check is enabled Clear—the required check is disabled
2	Minimal side length	Select the value from the list	Sets the number of characters in the group to search for repetitions in the mirror image	Digits 1–8	1	Depends on the selected input mode
3	Do not check leading zeros	Set the checkbox	Disregards leading zeros as characters when entering the PIN code	Boolean type	Clear	Set—leading zeros are disregarded Clear—leading zeros aren't disregarded
4	Check inside	Set the checkbox	Enables the corresponding search in the entire PIN code	Boolean type	Clear	Set—search in the entire PIN code Clear—search only from the beginning

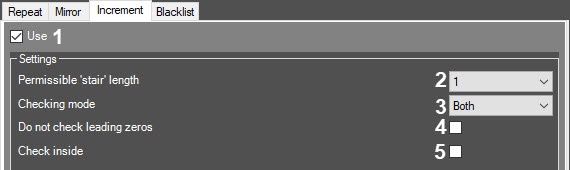

The Increment tab
1	Use	Set the checkbox	Enables the required PIN check	Boolean type	Clear	Set—the required check is enabled Clear—the required check is disabled
2	Permissible ‘stair’ length	Select the value from the list	Sets the number of characters in increasing/decreasing order from which the search will be performed	Digits 1–8	1	Depends on the selected input mode
3	Checking mode	Select the value from the list	Sets the checking mode of the PIN code character sequence	List of checking modes of the PIN code character sequence	Both	Both—sequences of characters are checked in increasing (increment) and decreasing (decrement) order. Increment—sequences of characters are checked in increasing order Decrement—sequences of characters are checked in decreasing order
4	Do not check leading zeros	Set the checkbox	Disregards leading zeros as characters when entering the PIN code	Boolean type	Clear	Set—leading zeros are disregarded Clear—leading zeros aren't disregarded
5	Check inside	Set the checkbox	Enables the corresponding search in the entire PIN code	Boolean type	Clear	Set—search in the entire PIN code Clear—search only from the beginning

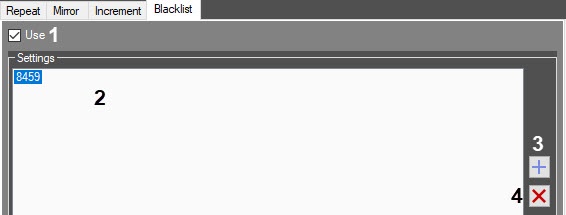

The Blacklist tab
1	Use	Set the checkbox	Enables the required PIN check	Boolean type	Clear	Set—the required check is enabled Clear—the required check is disabled
2	List of PIN codes	Using the Add button	Contains the list of PIN codes prohibited for use	String	NA	NA
3	The Add button	Click the button	Opens the form for adding a PIN code to the blacklist	NA	NA	NA
4	The Delete button	Click the button	Removes the PIN code from the blacklist	NA	NA	NA

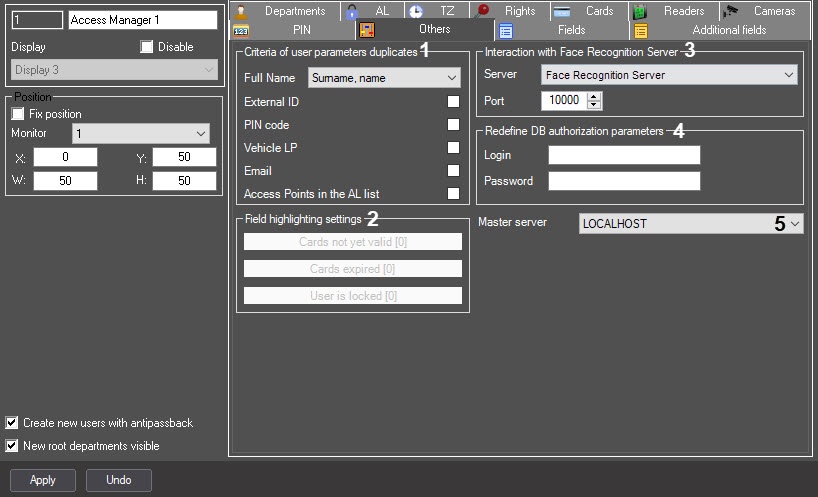

The Others tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Criteria of user parameters duplicates group
	Full name	Select the value from the list	Displays a list of criteria for restricting duplicate user parameters by name, surname, patronymic	List of available combinations	Not used	Not used—added users are not checked for duplicate name, surname, patronymic Surname, name—added users are checked for duplicate name and surname Surname, name, patronymic—added users are checked for duplicate name, surname, patronymic
	External ID	Set the checkbox	Checks the added users for duplicate external ID	Boolean type	Clear	Set—added users are checked for duplicate external ID Clear—added users aren't checked for duplicate external ID
	PIN code	Set the checkbox	Checks the added users for duplicate PIN code	Boolean type	Clear	Set—added users are checked for duplicate PIN code Clear—added users aren't checked for duplicate PIN code
	Vehicle LP	Set the checkbox	Checks the added users for duplicate license plates	Boolean type	Clear	Set—added users are checked for duplicate license plates Clear—added users aren't checked for duplicate license plates
	Email	Set the checkbox	Checks the added users for duplicate emails	Boolean type	Clear	Set—added users are checked for duplicate emails Clear—added users aren't checked for duplicate emails
	Access Points in the AL list	Set the checkbox	Checks the added users for duplicate access points included in the access level	Boolean type	Clear	Set—added users are checked for duplicate access points included in the access level Clear—added users aren't checked for duplicate access points included in the access level
2	The Field highlighting settings group
	Cards not yet valid [0]	Click the button	Enables the color highlighting of the Cards not yet valid field	NA	NA	NA
	Cards expired [0]	Click the button	Enables the color highlighting of the Cards expired field	NA	NA	NA
	User is locked [0]	Click the button	Enables the color highlighting of the User is locked field	NA	NA	NA
3	The Interaction with Face Recognition Server group
	Server	Select the value from the list	Displays the list of the Face Recognition Server objects created on the Hardware tab of the System settings dialog window	List of the Face Recognition Server objects created in the system	NA	Depends on the Face Recognition Server objects created in the system
	Port	Enter the value in the field	Sets the communication port to connect to the Face Recognition Server via the REST API. The default value is 10000	Natural number series	0	NA
4	The Redefine DB authorization parameters—this group of settings is currently rudimentary
5	Master server	Select the value from the list	Displays the list of the Server objects	List of the Server objects	NA	Depends on the number of the created Server objects

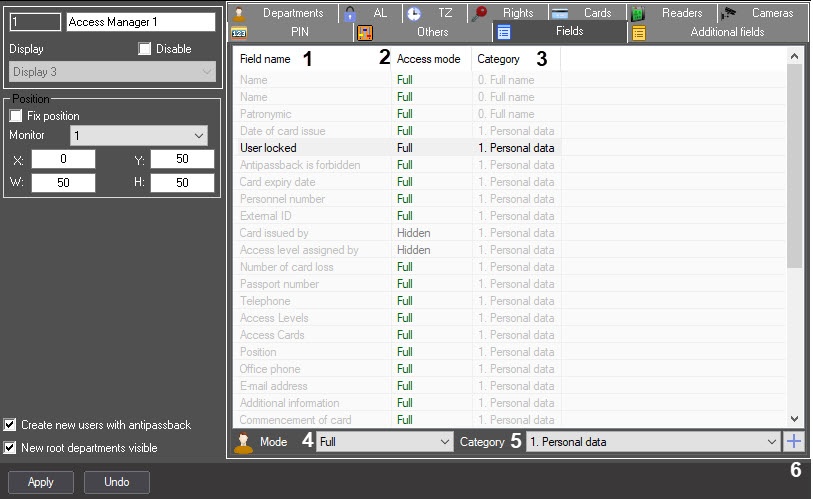

The Fields tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	Field name	Automatically	Displays the list of standard user fields	List of standard user fields	NA	List of fields depends on the integration modules that you use
2	Access mode	Automatically	Displays the list of assigned access modes for standard user fields	List of assigned access modes for standard user fields	NA	NA
3	Category	Automatically	Displays the list of category names to which the standard fields belong	List of category names to which the standard fields belong	NA	NA
4	Mode	Select the value from the list	Assigns the mode of working with standard user fields in the Access Manager interface object	List of access modes of the standard user field created in the system	Depends on the standard user field	Edit—the field is displayed with the possibility of editing Hidden—the field is hidden Read only—the field isn't available for editing Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field is highlighted with red asterisks
5	Category	Select the value from the list	Assigns a category to a standard user field	List of category names of the standard user field created in the system	Depends on the standard user field	0. Full name 1. Personal data 3. Vehicle 4. Visitor data
6	Button for adding a category	Click the button	Adds a category of a standard user field	NA	NA	NA

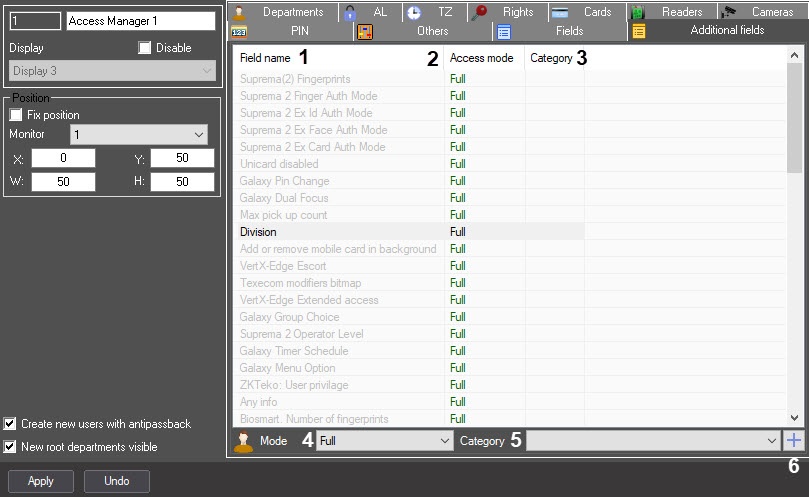

The Additional fields tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	Field name	Automatically	Displays the list of additional user fields	List of additional user fields	NA	List of fields depends on the integration modules that you use
2	Access mode	Automatically	Displays the list of assigned access modes for additional user fields	NA	NA	NA
3	Category	Automatically	Displays the list of category names to which the additional fields belong	NA	NA	NA
4	Mode	Select the value from the list	Assigns the mode of working with additional user fields in the Access Manager interface object	List of access modes of the additional user field created in the system	Depends on the additional user field	Edit—the field is displayed with the possibility of editing Hidden—the field is hidden Read only—the field isn't available for editing Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field is highlighted with red asterisks
5	Category	Select the value from the list	Assigns a category to an additional user field	List of category names of the additional user field created in the system	NA	NA
6	Button for adding a category	Click the button	Adds a category of an additional user field	NA	NA	NA
