Attention!

The FS80 control reader is to be used only with the BioSmart integration module (see BioSmart Integration Module Configuration and Operation Manual).

To add the biometric parameters (fingerprints) of users from the Access Manager module using the BioSmart FS80 biometric control reader, do the following:

  1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
  2. Select the (Suprema/Biosmart) FS80 control reader extension that corresponds to the FS80 biometric control reader.
  3. The Operations on biometrics dialog box will open. To add a new fingerprint, click the Add fingerprints button.

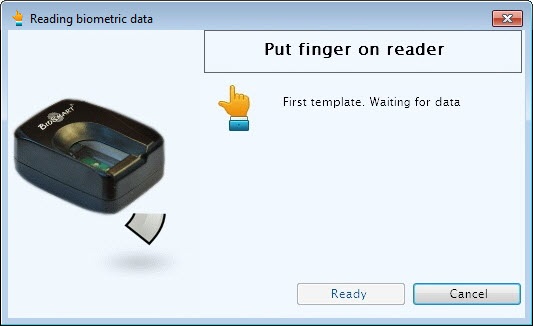

    The Reading biometric data window will open.

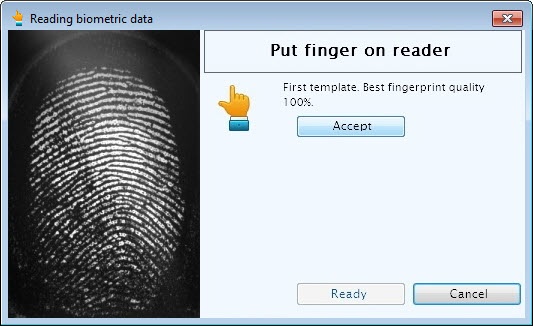

  4. Put finger on reader and hold until the fingerprint appears in the window.
  5. Click the Apply button and repeat the procedure with the same finger.

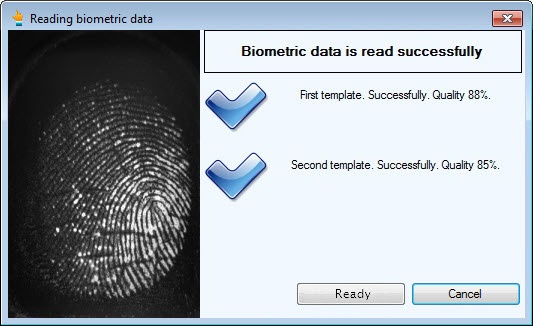

  6. If the procedure was carried out properly, and the fingerprints match, the Biometric data is valid message will be displayed.
  7. Click Ready to save the fingerprint.
  8. If required, add new fingerprints or delete all added fingerprints.
  9. Click Ready and then save the user parameters.

The biometric parameters (fingerprints) of users from the Access Manager module are added using the BioSmart FS80 biometric control reader.
