Automatic search for KeyKing controllers is only possible if the connection line is made over a COM port. If the connection is via Ethernet (the TCP server or TCP client methods), then a TC3XY Controller object must be created manually based on the KeyKing Connection Line object.

To automatically search for KeyKing controllers, do the following:

  1. Go to the KeyKing Connection Line object's settings pane.

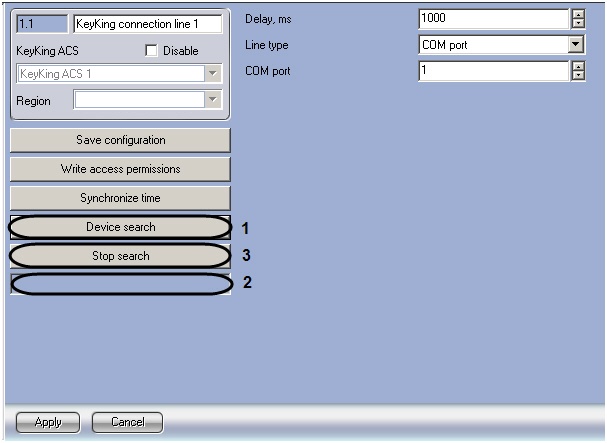

  2. Click the Device search button (1). A progress bar will indicate the progress of the search for devices (2).

    Note.

    To cancel the search, click the Stop search button (3).

     Any controllers that are found will be added to the ACFA Intellect Software System's hardware tree, based on the KeyKing Connection Line object. Moreover, the configuration of these controllers will be read and added to the object tree.

    This completes the automatic search for KeyKing controllers.
