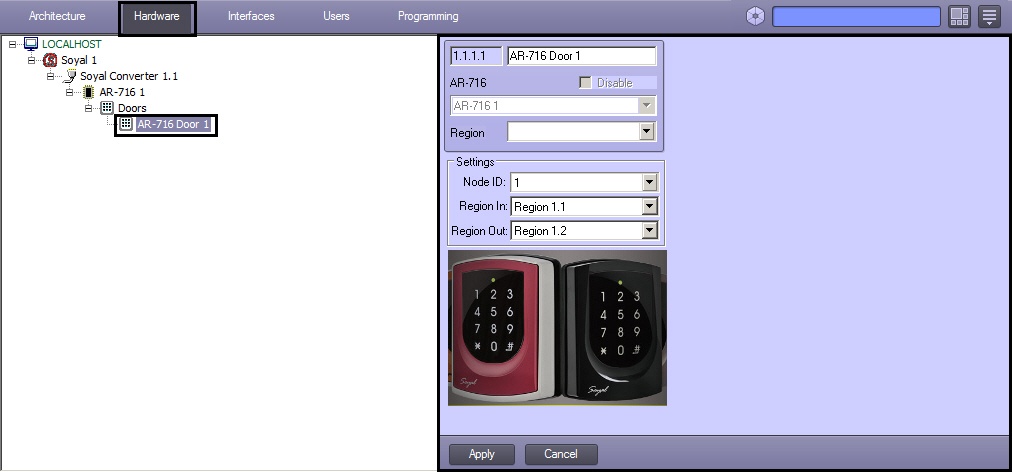

Configuration of AR-716 Door object is carried out on setting panel of corresponding object. This object is created on the basis of AR-716 object on Hardware tab of System settings dialog box.

To configure the AR-716 door do the following:

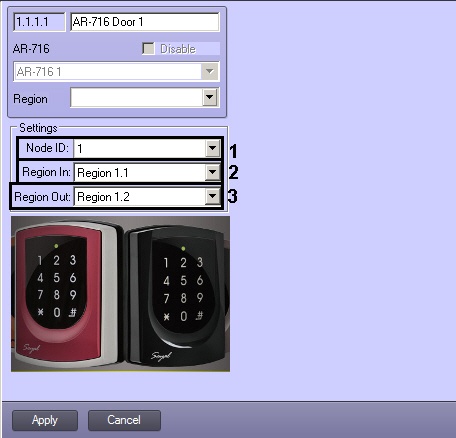

  1. Go to the AR-716 Door object's settings panel.
  2. From the Node ID drop-down list select the ID of AR-716 Door object (1).
  3. From the Region In drop-down list select the Area located in the site of exit through this reader (2).
  4. From the Region Out drop-down list select the Area located in the site of entry through this reader (3).
  5. To save changes, click the Apply button (4).

This completes the configuration of the AR-716 Door object.
