The configuration of FS4000 panel lines is carried out on the setting panel of the Line object. This object is created on the basis of the FS4000 panel object on the Hardware tab of the System settings dialog box while constructing the UniPos 4000/5000 FSA object (see Construction of the UniPos 4000/5000 FSA object tree).

Configuration of FS4000 panel lines is carried out the following way:

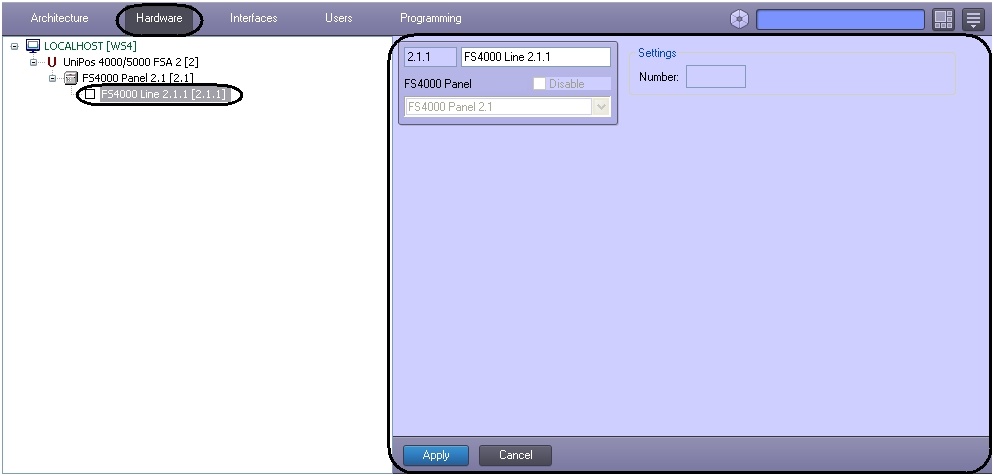

  1. Go to the setting panel of the Line object.

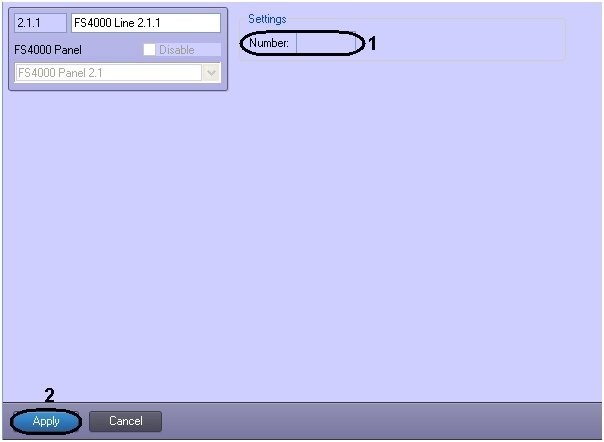

  2. In the Number field the id of FS4000 panel is displayed (1).
  3. To save changes click Apply (2).

Configuration of FS4000 panel lines is completed.
