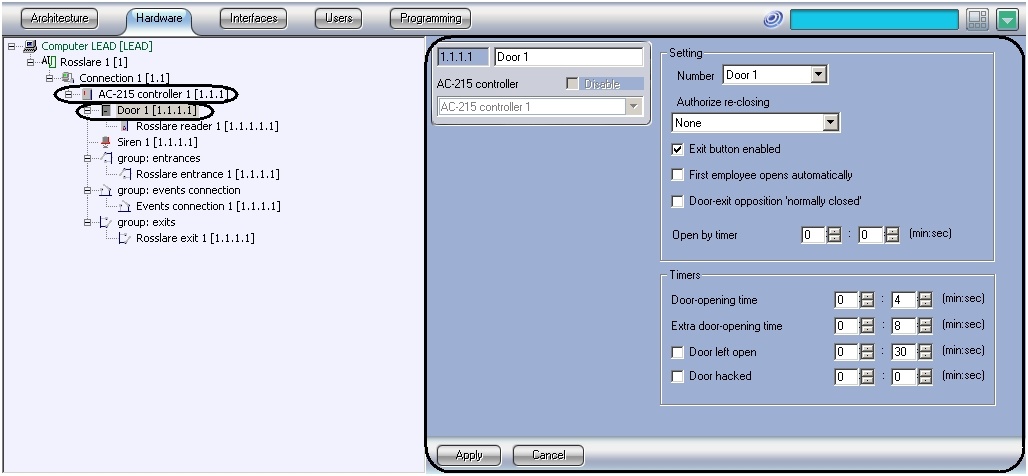

Configuration of AC-215 controller doors is performed on the setting panel of the Door object. This object is created on the basis of the AC-215 controller object on the Hardware tab of the System settings dialog box.



To configure AC-215 controller doors do the following:

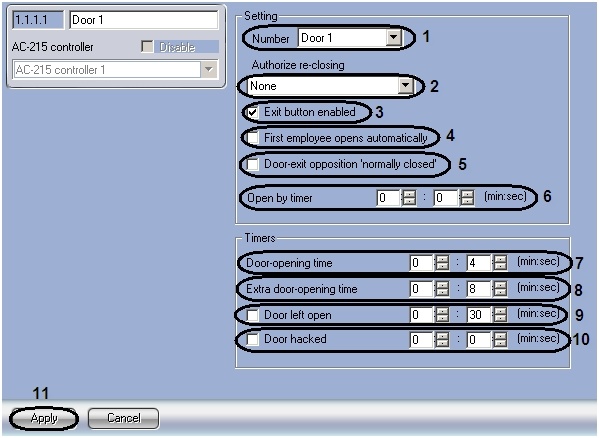

  1. Go to the setting panel of the Door object.
  2. From the Number dropdown list select the door address (1).

  3. From the Authorize re-closing dropdown list select the door-closing mode (2).

    Operation mode

    Description of operation mode

    No

    Lock opens for programmed period

    Door monitoring is closed

    Lock timer stops after door-closing

    Door monitoring is open

    Lock timer stops after door-opening

  4. To enable the exit button set the Exit button enabled checkbox. (3).
  5. To enable the automatic door opening after the first incoming user set the First employee opens automatically checkbox (4).
  6. To activate the exit mode set the Door-exit opposition ‘normally closed’ checkbox (5).
  7. In the Open by timer field using up-down keys set the time (in minutes and seconds) at the expiration of which the door opens (6).
  8. In the Door-opening time field using up-down keys set the time (in minutes and seconds)  during which the lock is open (7).
  9. In the Extra door-opening time field using up-down keys set the extra time period (in minutes and seconds)  during which the door may be open (8).
  10. Set the Door left open checkbox and using up-down keys set the time (in minutes and seconds) during which the door may be open (9).
  11. Set the Door hacked checkbox and using up-down keys set the time (in minutes and seconds) at the expiration of which the door is considered to be hacked (10).
  12. To save changes click Apply (11).

Configuration of doors is completed.
