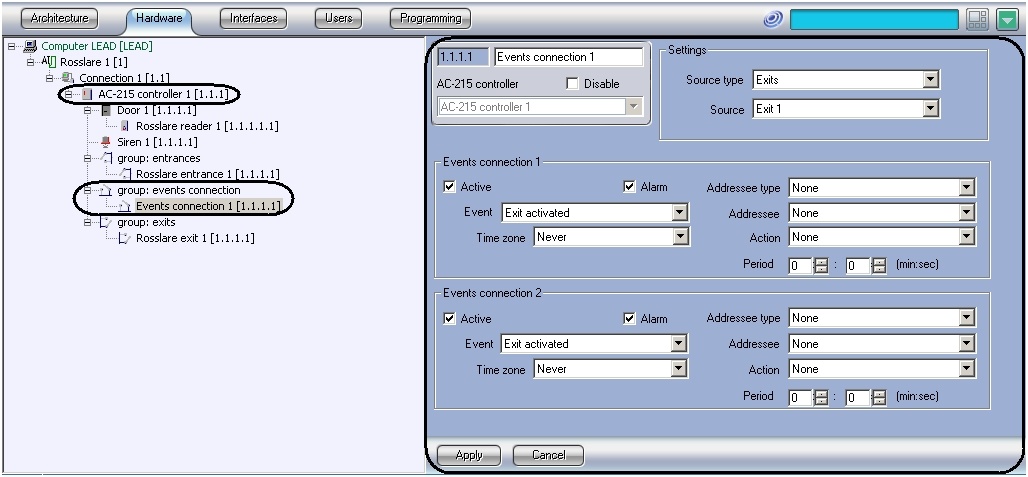

Configuration of AC-215 controller events connection is performed on the setting panel of the Events connection object. This object is created on the basis of the AC-215 controller object on the Hardware tab of the System settings dialog box.

To configure  AC-215 controller events connection do the following:

  1. Go to the setting panel of the Events connection object.

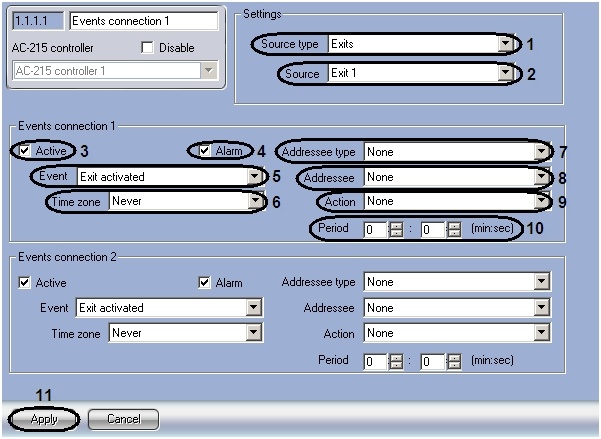

  2. From the Source type dropdown list select the type of events source-object (1).
  3. From the Source dropdown list select the event source-object (2).
  4. To activate events connection set the Active checkbox (3).
  5. To trigger the alarm on the event set the Alarm checkbox (4).
  6. From the Event dropdown list select the event to which the executor object reacts (5).
  7. From the Time zone dropdown list select the time zone for the action on event (6).
  8. From the Addressee type dropdown list select the type of executor object (7).
  9. From the Addressee dropdown list select the executor object (8).
  10. From the Action dropdown list select the action of the executor object (9).
  11. In the Period field using up-down keys set the time period during which the action of executor object is carried out (10).
  12. To save changes click Apply (11).

Configuration of events connection is completed.
