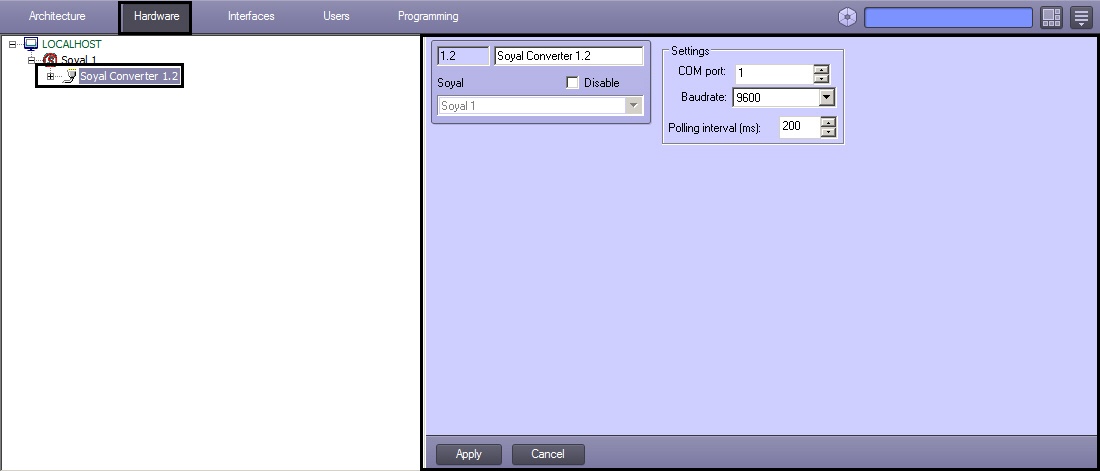

The Soyal converter in the ACFA Intellect software is realized on the Soyal Converter object’s settings panel. This object must be created based on the Soyal object on the Hardware tab of the System Settings dialog.

The Soyal converter is configured as follows:

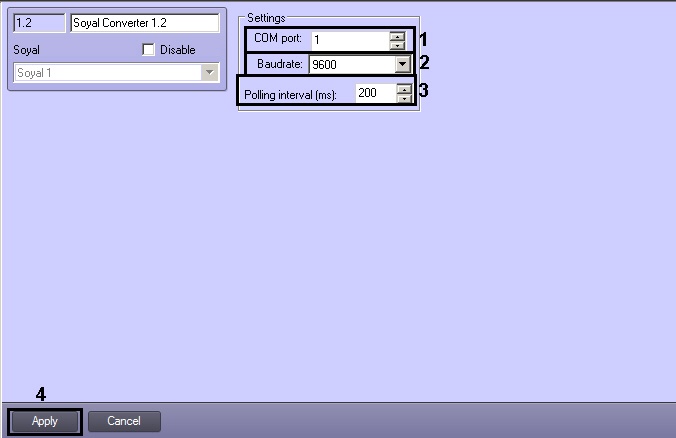

  1. Go to the Soyal Converter object’s settings panel.
  2. With the help of up-down buttons in the COM port: field set the number of the COM port used to connect controllers to the Server (1).
  3. From the Baudrate: drop-down list select the speed of controller’s COM-port connection (2).
  4. With the help of up-down buttons in the Polling interval (ms): field set the interval of the COM-port polling in milliseconds (3).
  5. To save changes click the Apply button (4).

This completes the configuration of the Soyal converter.
