An ASA status panel is configured on the settings pane of the corresponding object. An ASA Status Panel object is created based on the AAN Controller object.

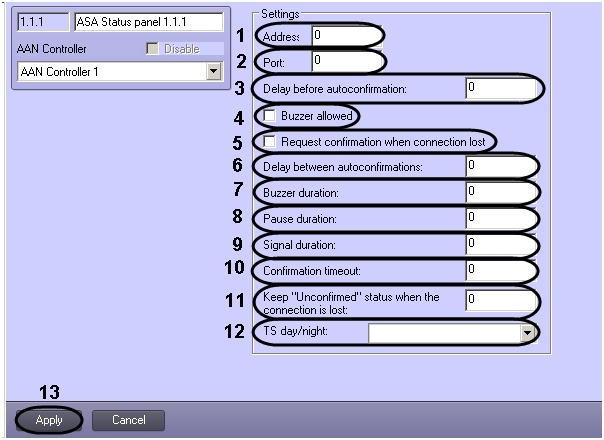

The connection with an ASA status panel is configured as follows:

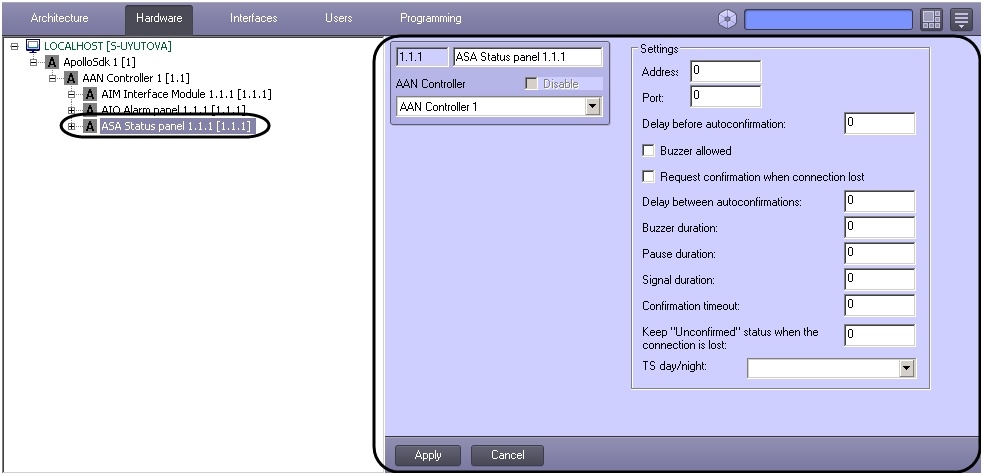

  1. Go to the ASA Status Panel object's settings panel.
  2. In the Address field, enter the ASA panel's unique address (1).
  3. Select the port used to connect to the ASA panel from the Port dropdown list (2).
  4. In the Delay before autoconfirmation field, enter the time in seconds before an alarm is automatically confirmed (3).
  5. Check the Buzzer enabled checkbox if the ASA panel's buzzer is to be enabled (4).
  6. If confirmation is required when the connection between the ASA panel and the controller is lost, then check the appropriate checkbox (5).
  7. In the Delay between autoconfirmations field, enter the time delay (in seconds) between automatically confirmed alarms (6).
  8. In the Buzzer duration field, enter the duration (in seconds) of the buzzer's tones (7).
  9. In the Pause duration field, enter the duration (in seconds) of the pause between the buzzer's tones (8).

  10. In the Signal duration field, enter the duration (in seconds) of the buzzer's light signal (8).

    Note:

    The signal consists of buzzing and pauses. In order for the ASA panel's buzzer to operate correctly, the value of Signal duration must be greater than or equal to the sum of Buzzer duration and Pause duration.
  11. In the Confirmation timeout field, enter the time period (in seconds) before confirmation of an alarm (10).
  12. In the Keep "Unconfirmed" status when the connection is lost field, enter the time period (in seconds) during which the Unconfirmed status will be preserved during connection loss (11).

  13. From the TS day/night dropdown list, select the time schedule that will define day for the ASA panel (12).

    Note:

    Any time outside the selected time schedule will be considered night.
  14. To save changes, click the Apply button (13).

This completes the configuration of the ASA panel.
