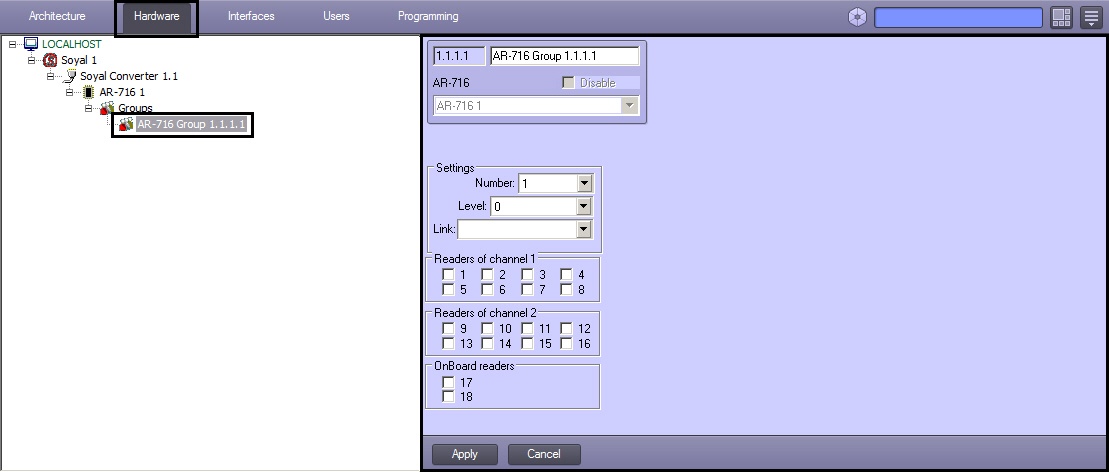

Configuration of AR-716 Group object is carried out on setting panel of corresponding object. This object is created on the basis of AR-716 object on Hardware tab of System settings dialog box.

To configure the AR-716 group do the following:

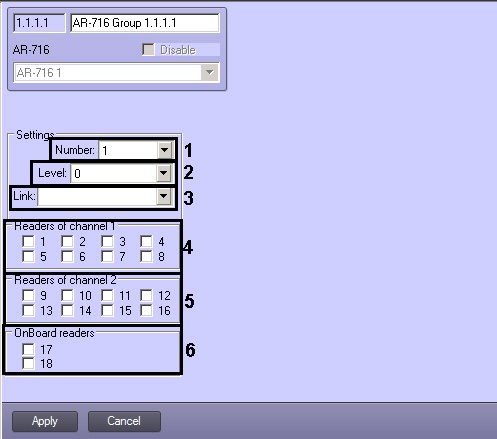

  1. Go to the AR-716 Group object's settings panel.
  2. From the Number drop-down list select the number of AR-716 Group object (1).
  3. From the Level drop-down list select the level of group priority (2).
  4. From the Link drop-down list select the link on the related group (3).
  5. In the Readers of channel 1 section select those door readers which are connected to the Channel 1 (4).
  6. In the Readers of channel 2 section select those door readers which are connected to the Channel 2 (5).
  7. In the OnBoard readers section select those WG readers which are connected to the controller (6).
  8. To save changes, click the Apply button.

This completes the configuration of the AR-716 Group object.
