The connection with an AIM Interface Module is configured on the settings panel of the corresponding object. An AIM Interface Module object is created based on the AAN Controller object.

The connection with an AIM Interface Module is configured as follows:

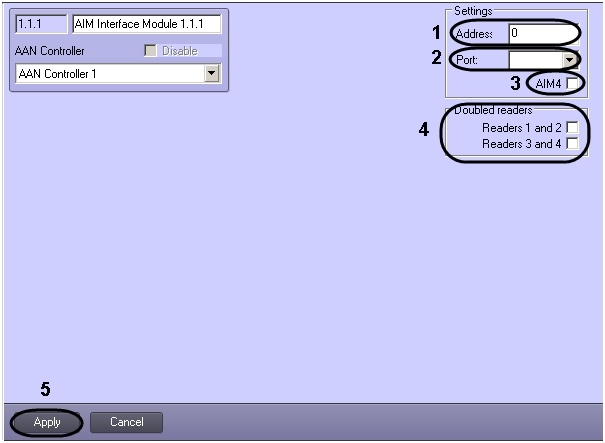

  1. Go to the AIM Interface Module object's settings panel.
  2. In the Address field, enter the AIM Interface Module's unique address (1).
  3. Select the port used to connect to the AIM Interface Module from the Port dropdown list (2).
  4. If the AIM4 interface module is in use, set the AIM4 checkbox (3).
  5. If doubled readers are in use in the ApolloSDK system, set the checkboxes in front of those readers which are doubled (4).
  6. To save changes, click the Apply button (5).

This completes the configuration of the connection with the AIM interface module.
