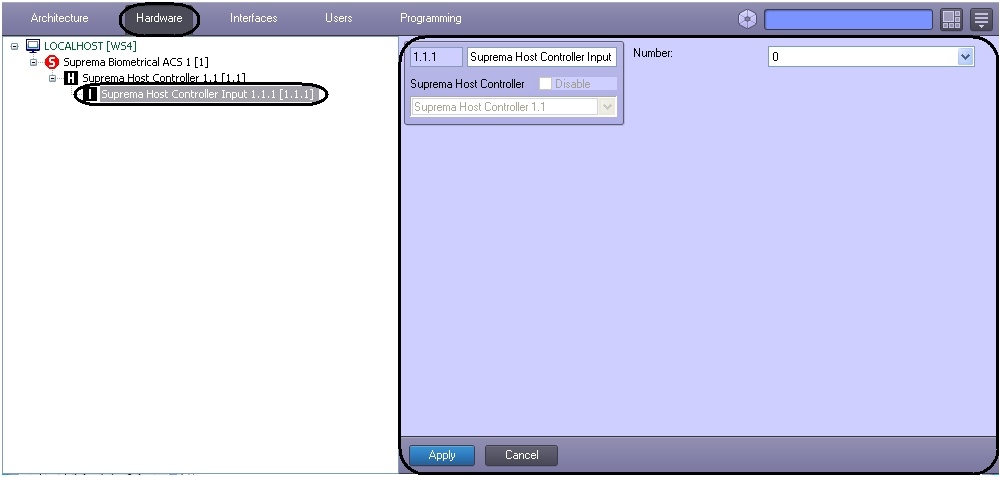

The Suprema Host Controller Input object is configured on the Suprema Host Controller Input object's settings panel. This object is created based on a Suprema Host Controller object on the Hardware tab of the System Settings dialog.



To configure the Suprema Host Controller Input do the following:

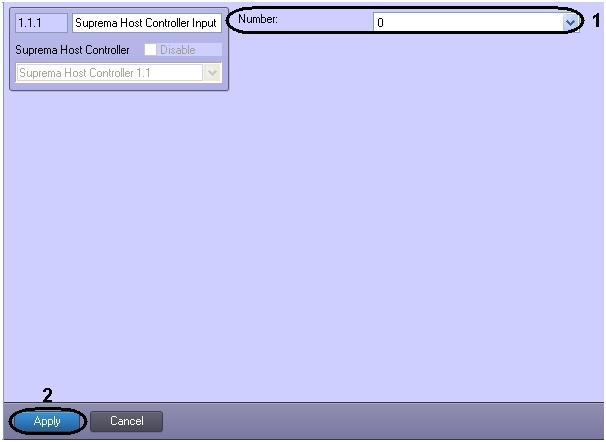

  1. Go to the Suprema Host Controller Input object’s settings panel.
  2. From the Number: drop-down list select the number of the controller input (1).
  3. To save changes click the Apply button (2).

This completes the configuration of the Suprema Host Controller Input object.
