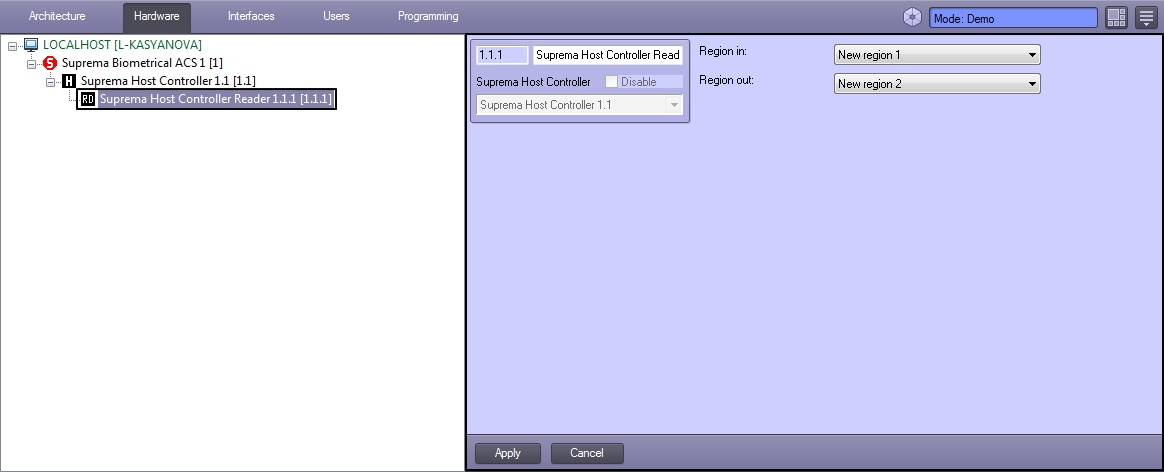

The Suprema Host Controller Reader object is configured on the Suprema Host Controller Reader object settings panel. This object is created based on a Suprema Host Controller object on the Hardware tab of the System Settings dialog.

To configure the Suprema Host Controller Reader do the following:

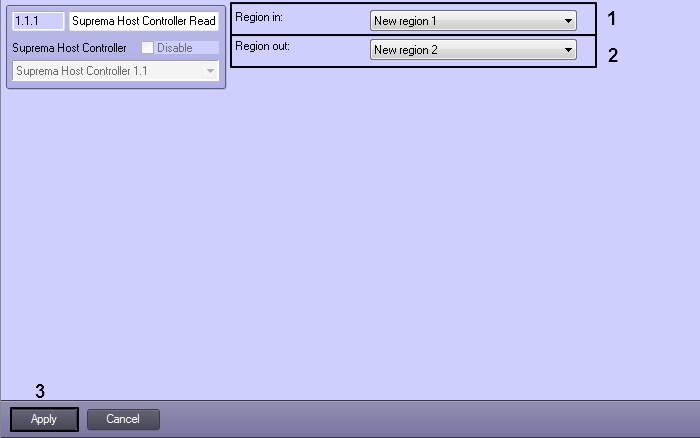

  1. Go to the Suprema Host Controller Reader object settings panel.
  2. From the Region in: drop-down list select the region which the user enters (1).
  3. From the Region out: drop-down list select the section from which the user enters (2).
  4. To save changes click the Apply button (3).

The configuration of the Suprema Host Controller Reader object is complete.

Note

The Suprema Host Controller Reader can be configured to work with the Access Manager module, see Configure the interaction between the Suprema Biometrical ACS and the Access Manager module.
