The Suprema Secure IO object is configured on the Suprema Secure IO object's settings panel. This object is created based on a Suprema Host Controller object on the Hardware tab of the System Settings dialog.



To configure the Suprema Secure IO do the following:

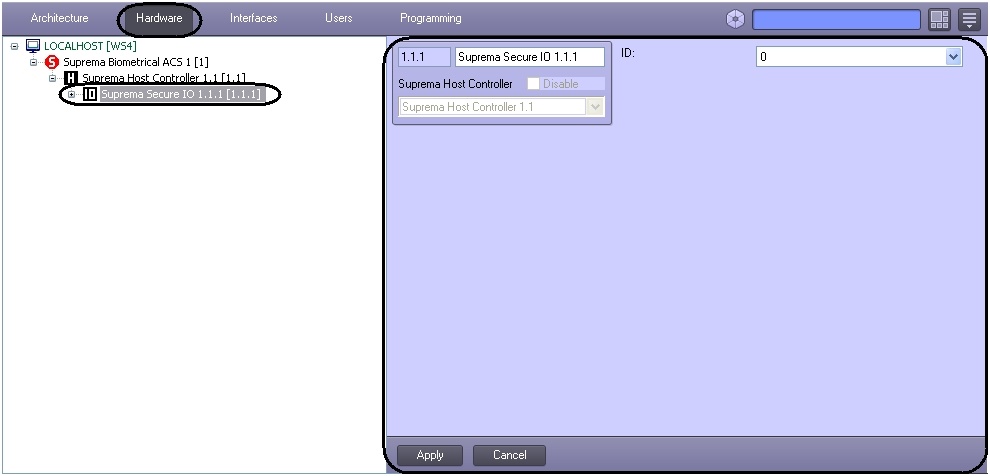

  1. Go to the Suprema Secure IO object’s settings panel.

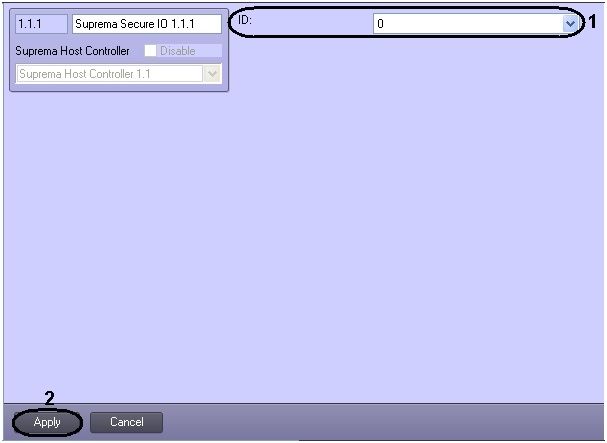

  2. From the Number: drop-down list select the number of the controller (1).
  3. To save changes click the Apply button (2).

This completes the configuration of the Suprema Secure IO object.
