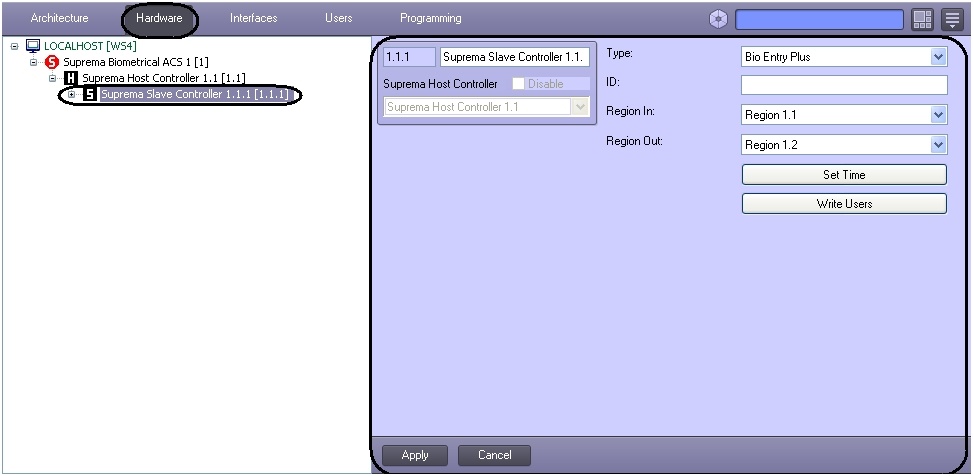

The Suprema Slave Controller object is configured on the Suprema Slave Controller object's settings panel. This object is created based on a Suprema Host Controller object on the Hardware tab of the System Settings dialog.



To configure the Suprema Slave Controller do the following:

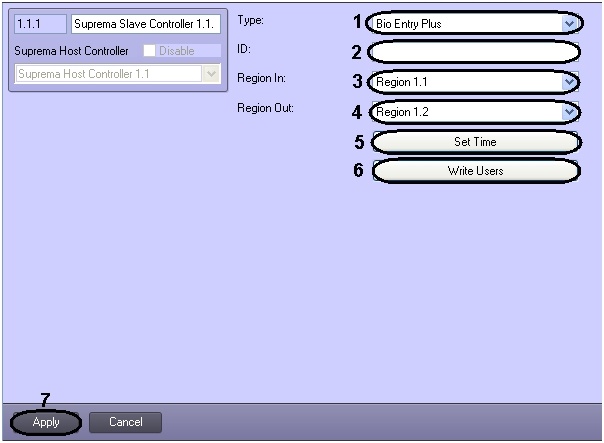

  1. Go to the Suprema Slave controller object’s settings panel.
  2. From the Type: drop-down list select the type of the controller (1). The following types are available:
    1. Bio Entry Plus – finger and card can be used;
    2. XPass – only card can be used
    3. X-station – card and password can be used.
  3. Enter the hardware address of a connected controller in the ID: field (2).
  4. From the Region In: drop-down list select the Area located in the site of exit through this reader (3).
  5. From the Region Out: drop-down list select the Area located in the site of entry through this reader (4).
  6. Click the Set time button to set time to the controller (5).
  7. Click the Write Users button to write users to the controller (9).
  8. To save changes click the Apply button (10).

This completes the configuration of the Suprema Slave Controller object.
