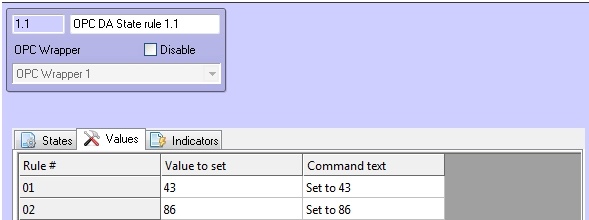

To configure this rule specify the following parameters on the Values tab of the OPC DA State rule object’s settings panel: in the Value to set column enter the value which is to be set by command, in the Command text enter the name of command. It is possible to specify at most 10 intervals.

To save changes click the Apply button.

Commands are applied from the map (see the Working with OPC-server elements of Data Access standard on the map section).
