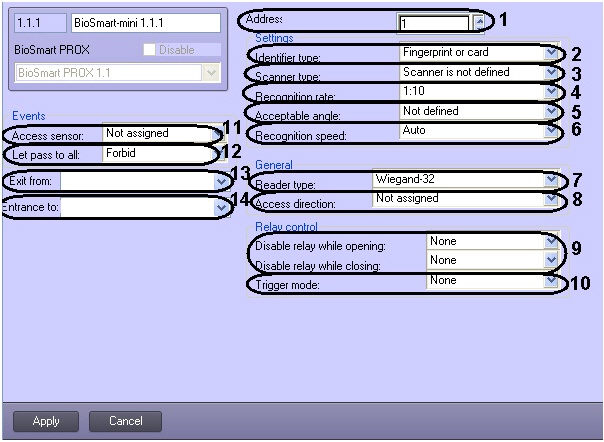

BioSmart-mini reader is configured on the settings panel of the BioSmart-mini reader object. This object is created on the base of the BioSmart PROX object.

BioSmart-mini reader is configured as follows:

  1. In the Address field specify the address of the reader in the BioSmart ACS internal network (1).
  2. In the Identifier type dropdown list select the mode of access via the reader (2).
    Fingerprint or card – access will be guaranteed after scanning a fingerprint or access card.
    Fingerprint and card – access will be guaranteed after placing an access card and then scanning a fingerprint for 10 seconds.

  3. In the corresponding list select the type of scanner used in the reader (3).

    Attention!

    Only recommended values specified in steps 4-6 are to be set. Other values are to be approved by BioSmart ACS vendor. For the values to take effect the configuration is to be sent to controller (see Sending configuration to controller section).

  4. In the Recognition rate list select the rate of false identification by a fingerprint (4). Recommended value – 1/100000.
  5. Select the maximum acceptable angle of fingerprint rotation about boresight (in degrees) (5). Recommended value – 30.
  6. Select the fingerprint recognition algorithm in the Recognition speed list (6). The faster recognition speed, the more likely the false access denial. The Auto value is to be in use – in this mode the speed is determined automatically depending on the number of fingerprint templates in the controller database.
  7. Select the type of access cards the reader uses (7).
  8. Select the access direction in the corresponding list (8).
  9. Disable relay while door opening/closing if necessary (9).
  10. If the trigger mode is to be enabled for relay (relay changes its state after each success access), then set the Yes value in the corresponding list (10).
  11. In the Access sensor list select the discrete input of controller with the events of which the reader will work (11).

  12. If necessary let pass by RFID access card with any code (12).

    Note.

    This parameter is relevant only if the reader with RFID access cards is in use (see step 7).

  13. In the Exit from dropdown list select the Region object corresponding to the territory situated on the side of entrance to the territory via the reader (13).
  14. In the Entrance to dropdown list select the Region object corresponding to the territory situated on the side of exit from the territory via the reader (4).

Click the Apply button to save all changes.
