Honeywell Galaxy Dimension control panel groups are configured in the settings panel of the Galaxy Group object. This object is created from the Galaxy Dimension object on the Hardware tab of the System settings dialog box.



Note.

Up to 32 Galaxy Group objects can be created from one Galaxy Dimension object.

Honeywell Galaxy Dimension groups are configured as follows:

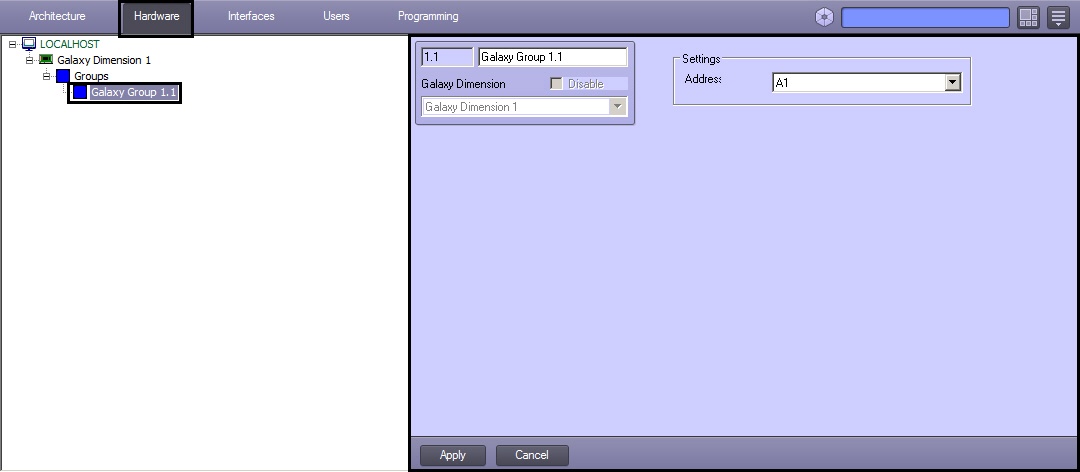

  1. Go to the settings panel of the Galaxy Group object.

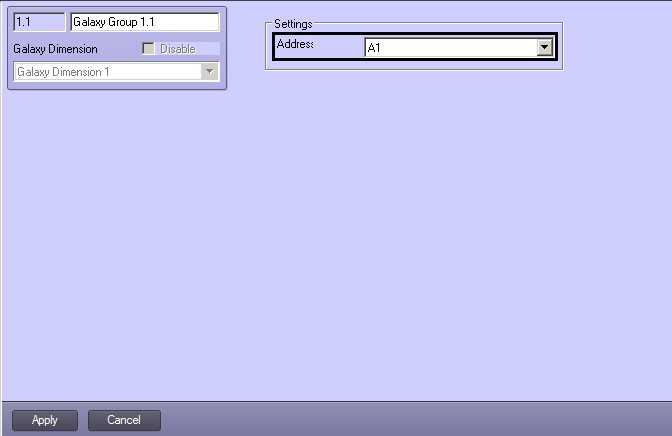

  2. In the Address drop-down list, select the address displayed for the specific group in the operator’s menu of the Honeywell Galaxy Dimension control panel.

    Note.

    For more information on group addressing, refer to the official documentation of the Honeywell Galaxy Dimension control panel.
  3. To save changes, click Apply.
  4. Repeat steps 1-3 for all Honeywell Galaxy Dimension control panel groups.

Configuration of Honeywell Galaxy Dimension groups is completed.
